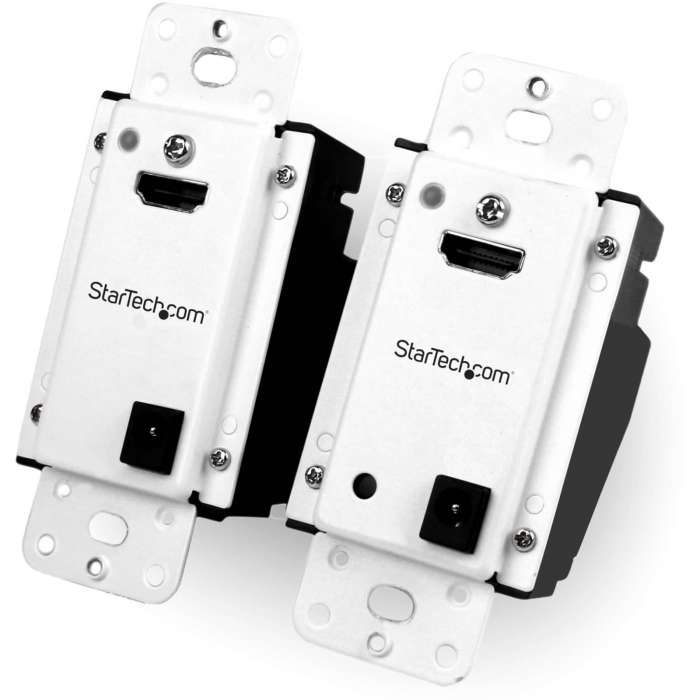

StarTech.com Wall Plate HDMI over CAT5 Extender with Power Over Cable
Delivered in 2-4 business days
- Installs in a wall plate for a tidy professional installation
- Only requires power at one side of the installation with Power Over Cable technology
- 165ft (50m) HDMI extention over standard CAT5 cabling
- Support for video resolutions up to 1920x1200 or 1080p
- Optional power configurations with support for in-wall terminal power, or external power adapter
The ST121HDWP HDMI® over CAT5 Extender Wall PlateKit lets you extend your HDMI audio/video up to 165feet (50 meters) overCat5e or Cat6 cabling. For a seamless, professional installation, you can install the included transmitter and receiver units into wall plates, with theadded versatility of Power Over Cable enablingboth units tobe powered by the same single power source. Unlike some video extension systems, the ST121HDWPlets you make use of yourexisting Cat5 or Cat6 networking cable infrastructure, saving you the time and cost of runningexpensiveproprietarycable. Plus, the kit includes both the extender and receiver, saving you the hassle of buying each componentindividually. With a sleek finishand wall plate housing, the ST121HDWP is designed with professional installations in mind. Offering astylish integration into yourmodern boardroom or classroom, the HDMI extender looks great in any application that requires your equipmentand cabling to be concealed from public view. The HDMI extender is great forboth short and long-range applications. With a discreetinstallation the extender is perfect for boardrooms, restaurants, hotels, classrooms andlecture halls. Plus, because the ST121HDWP can extend your signal upto165 feet (50 meters) overCat5, you can achievea totaldistance of 197ft usingHDMI cables up to 5m (16ft) long atboth the transmitter and receiver ends-- perfectfor long range digital signage applications. For installationflexibility,theextender offers the unique benefit of an optional external power adapter, giving you theoption to power your extender externally for ease of installation, or internallywith a12V DC terminal todiscreetly hide your power source. The ST121HDWP is TAA compliant and backed by a StarTech.com 2-year warranty with free lifetime technical support.
| Brand Name | StarTech.com |
|---|---|
| Connectivity Technology | Wired |
| Country of Origin | Taiwan |
| Environmental Certification | REACH |
| Environmental Certification | RoHS |
| Environmental Certification | WEEE |
| Environmentally Friendly | Yes |
| Form Factor | Wall Mountable |
| Graphics Modes | WUXGA |
| HDMI In | Yes |
| HDMI Out | Yes |
| Limited Warranty | 2 Year |
| Manufacturer | StarTech.com |
| Manufacturer Part Number | ST121HDWP |
| Maximum Operating Distance | 165 ft |
| Maximum Video Resolution | 1920 x 1200 |
| Media Type Supported | Twisted Pair |
| Network (RJ-45) | Yes |
| Number of HDMI Inputs | 1 |
| Number of HDMI Outputs | 1 |
| Number of Input Devices Supported | 1 |
| Number of Network (RJ-45) Ports | 4 |
| Number of Output Devices Supported | 1 |
| Package Contents |
|
| Product Name | Wall Plate HDMI over CAT5 Extender with Power Over Cable - 1080p - 165ft (50m) |
| Product Type | Video Extender Receiver |
| Receiver Depth | 4.10" |
| Receiver Height | 1.70" |
| Receiver Weight (Approximate) | 15.10 oz |
| Receiver Width | 1.80" |
| TAA Compliant | Yes |
| Transmitter Depth | 4.10" |
| Transmitter Height | 1.70" |
| Transmitter Weight (Approximate) | 15.10 oz |
| Transmitter Width | 1.80" |
| Twisted Pair Cable Standard | Category 6 |
| Download PDF File |
| Brand | StarTech.com |
|---|---|
| Weight (lbs) | 1.1600 |
| UPC | 065030858526 |
| MPN | ST121HDWP |
