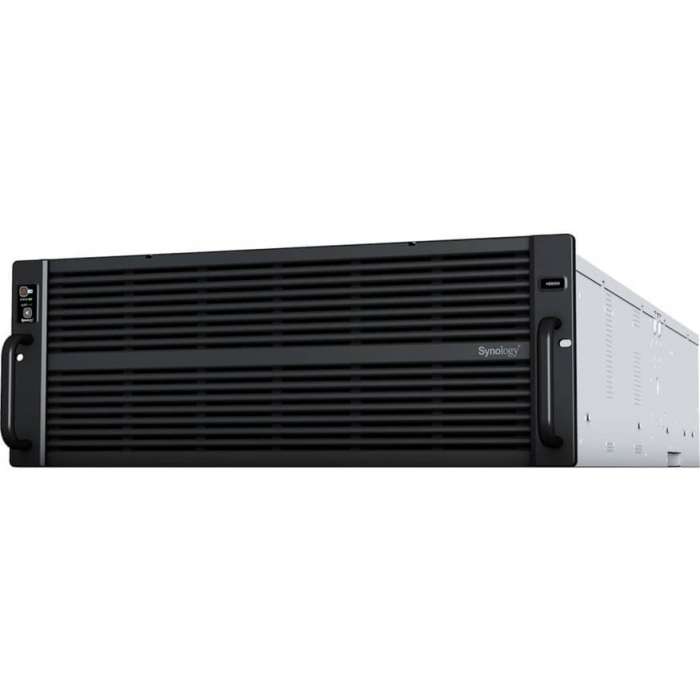

Synology High Density HD6500, 2 x Intel Xeon Silver 4210R Deca-core (10 Core) 2.40 GHz, 60 x HDD Supported, 0 x HDD Installed, 60 x SSD Supported

SKU
INGM00HU67
$23,915.46 /EACH

Delivered in 2-4 business days

Out of stock
  • SAN/NAS Storage System offers maximum storage productivity with added dependability.
  • Holds up to 60 HDDs to let you expand limitlessly.
  • Through RAID levels (0, 1, 5, 6, 10, basic, jbod), RAID provides data reliability, fault tolerance and improves overall performance.
  • DDR4 SDRAM memory technology for desired storage efficiency with accuracy and precision.
  • Perform computational tasks effectively accrediting the intel xeon silver 2.40 ghz processor.
  • RAID technology - data reliability, fault tolerance and improved overall performance.
  • Rack-mountable san/nas storage system allows maximum space utilization with easy and convenient access and retrieval of the data.
  • Optimize business network's performance with 10 Gigabit Ethernet connectivity.
  • DiskStation Manager OS makes you more productive and creative .

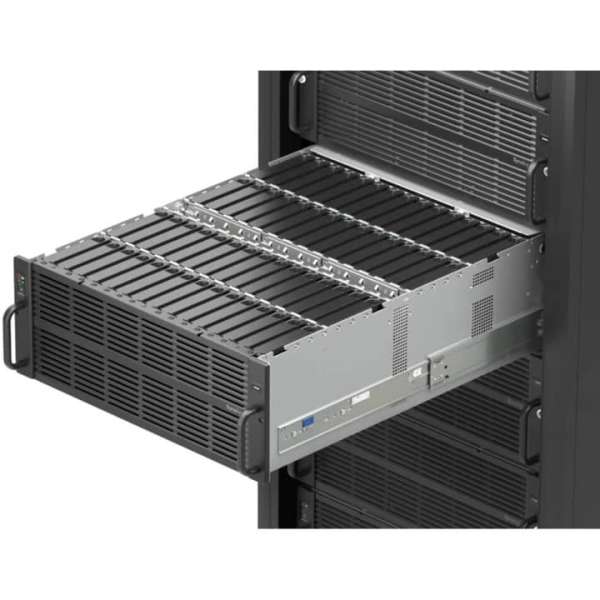

All the space you will ever need. With 60 bays in a 4U rackmount enclosure and support for up to 300 drives after expansion, the Synology HD6500 is the ideal high-density storage solution for large-scale warm and cold storage applications such as full system backups, video post-production, and large surveillance deployments. CPU. 2 x 10-core Intel Xeon Silver. Throughput. Over 6,688/6,662MB/s sequential read/write. Memory. 64 GB DDR4 ECC, expandable to 512 GB. Scalability. Expand to 300 drives with four RX6022sas expansion units. Consistent performance at five times the size. The HD6500 is designed to scale up to 5 times in capacity with four additional RX6022sas expansion units. SAS multipath-enabled connectivity provides up to double the typical performance together and increased redundancy. Built for high reliability. The HD6500 is built to keep mission-critical data and services accessible, so that businesses can continue to perform even when disaster strikes. Out-of-band (OOB) management. Simplify troubleshooting by managing powered-down devices remotely and accessing critical logs through a dedicated interface. Dual power supply. Reduce the possibility of power disruptions on a single distribution channel or PDU adversely impacting data and service availability with redundant PSUs. High-reliability expansion architecture. Redundant SAS links prevent single points of failure from affecting other expansion units, ensuring higher data and service availability. Powerful networking options. The HD6500 supports a large variety of networking interfaces, protocols, and configurations, whether you need fast sequential transfer, support for simultaneous connections, or high network redundancy. Built-in fast connectivity. Three Gigabit Ethernet and two 10GbE RJ-45 ports allow for rapid transfer speeds right out of the box. Mix and match network ports. Add up to 10 extra 10GbE SFP+/RJ-45, 25GbE SFP28, or Fibre Channel ports in varying configurations. Failover and network balancing. Bond multiple network interfaces with Link Aggregation to enable automatic network failover and load balancing. Consolidate your data storage. Back up your backup solutions, bring all your files together in one place, or bring distributed surveillance deployments under central control. A private cloud suite for file sharing. Synology Drive is a private cloud management and access solution that enables remote data access, synchronization, on-demand file restoration, and backup via desktop and mobile applications. Sync data between different platforms and devices, and access your organization's files through mobile apps, desktop clients, and a browser-based interface. Set granular file and folder access and sharing permissions. Maintain a full overview of file activities and track file share settings changes with detailed records in the advanced Synology Drive Admin Console. Learn more. Cross-site syncing. Leverage SMB or NFS shares to provide efficient access to company files over the local network or VPN. Manage data access privileges with access control lists (ACL) though Active Directory/LDAP integration and protect files against tampering or removal with built-in snapshot technology.


Brand NameSynology
Depth40.2"
Drive Interface (Interfaces/Ports)Serial ATA
Drive Interface (Interfaces/Ports)Serial Attached SCSI (SAS)
Drive InterfaceSerial ATA
Drive InterfaceSerial Attached SCSI (SAS)
Ethernet Technology10 Gigabit Ethernet
Expansion Slot Type (I/O Expansions)PCI Express 3.0 x16
Expansion Slot Type (I/O Expansions)PCI Express 3.0 x8
Expansion Slot TypePCI Express 3.0 x16
Expansion Slot TypePCI Express 3.0 x8
Form FactorRack-mountable
Height6.9"
Host Interface (Interfaces/Ports)USB 3.2 (Gen 1) Type A
Host InterfaceUSB 3.2 (Gen 1) Type A
Manufacturer Part NumberHD6500
ManufacturerSynology, Inc
Maximum Power Supply Wattage1600 W
Memory TechnologyDDR4 SDRAM
Network (RJ-45) (Interfaces/Ports)Yes
Network (RJ-45)Yes
Number of 2.5"/3.5" Bays (I/O Expansions)60
Number of Hard Drives Installed (Storage)0
Number of Hard Drives Installed0
Number of Hard Drives Supported (Storage)60
Number of Hard Drives Supported60
Number of Network (RJ-45) Ports (Interfaces/Ports)4
Number of Processors Installed2
Number of Solid State Drive Installed (Storage)0
Number of Solid State Drive Supported (Storage)60
Number of Total Expansion Bays (I/O Expansions)60
Number of Total Expansion Bays60
Number of Total Expansion Slots (I/O Expansions)4
Number of Total Expansion Slots4
Number of USB 3.2 Gen 1 Ports (Interfaces/Ports)2
Operating SystemDiskStation Manager
Packaged Quantity1
Processor CoreDeca-core (10 Core)
Processor ManufacturerIntel
Processor Model4210R
Processor Speed2.40 GHz
Processor TypeXeon Silver
Product ModelHD6500
Product NameHigh Density HD6500
Product TypeSAN/NAS Storage System
ProtocolsAFP
ProtocolsCalDAV
ProtocolsCIFS
ProtocolsFCP
ProtocolsFTP
ProtocolsHTTP
ProtocolsHTTPS
ProtocolsiSCSI
ProtocolsLDAP
ProtocolsNFS
ProtocolsNFSv3
ProtocolsNFSv4
ProtocolsSFTP
ProtocolsSMB
ProtocolsSMB 1.0
ProtocolsSMB 2.0
ProtocolsSMB 3.0
ProtocolsSNMP
ProtocolsWEBDAV
Rack Height4U
RAID Levels0, 1, 5, 6, 10, Basic, JBOD
RAID SupportedYes
Redundant Power SupplyYes
Standard Memory64 GB
Total Number of USB Ports (Interfaces/Ports)2
Total Number of USB Ports2
Weight (Approximate)83.56 lb
Width19"
Download PDF File
BrandSynology
Weight (lbs)90.0000
UPC846504003648
MPNHD6500
