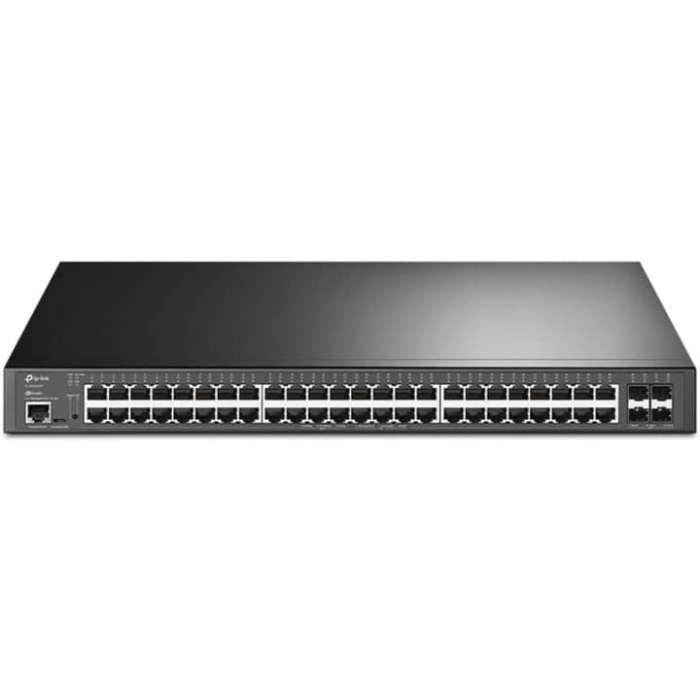

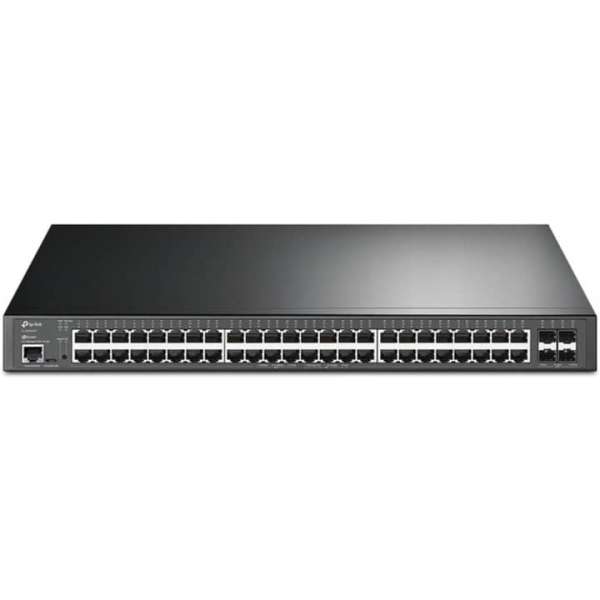

Tp Link TP-Link TL-SG3452XP, JetStream TL-SG3452XP Ethernet Switch, Limited Lifetime Warranty, 48 Ports, Manageable

SKU
INGM00HX77
$937.20 /EACH

Delivered in 2-4 business days

In stock
  • 10G Lightning-Fast Uplink: Enjoy high-bandwidth connectivity and non-blocking switching capacity with four 10 Gbps SFP+ slots..
  • PoE+ Output with 500 W Power Budget: Design your optimal network layout with forty-eight 802.3af/at PoE+ gigabit ports.*.
  • Centralized Cloud Management: Integrates into Omada SDN for cloud access and remote management..
  • Abundant L2 and L2+ Features: It supports a complete lineup of L2 and L2+ features, including Static Routing, enterprise-level QoS, and IGMP Snooping..
  • Robust Security Strategies: Helps protect LAN area investment with integrated IP-MAC-Port Binding, ACL, Port Security, and 802.1X Authentication..
  • Standalone Management: Web, CLI (Console Port, Telnet, SSH), SNMP, RMON, and Dual Image bring powerful management capabilities. .

10G Uplink Managed Switch with 48 PoE+ Ports for a Complete Omada NetworkTL-SG3452XP. 10G Lightning-Fast Uplink Connection. 4× 10 Gbps SFP+ Slots for High-Bandwidth Connectivity. PoE+ Output. 48× Gigabit PoE+ Ports with Total 500 W Power Budget. Centralized Cloud Management. SDN Solutions Integration for a Highly Efficient Network. Advanced L2+ Features. Static Routing, IGMP Snooping, 802.1Q VLAN and More. Enterprise Switch with 10G Uplink. 4× 10 Gbps SFP+ slots provide non-blocking switching performance, and ultra-low latency, so reliable and lightning-fast connections to servers and other switches are easily built.Dedicated 48 PoE+ Ports (500 W Budget) for Numerous Applications. The 48× 802.3af/at compliant PoE+ ports support up to 500 W total PoE power budget.* Designed to use a single Ethernet cable for data and power transmission, it offers flexible deployment for PoE-supported devices such as wireless access points, IP cameras, and IP phones, lowering infrastructure costs for small businesses. Software-Defined Networking (SDN) with Cloud Access. Omada's Software-Defined Networking (SDN) platform integrates network devices, including access points, switches, and gateways, providing 100% centralized cloud management. Omada creates a highly scalable network-all controlled from a single interface. Seamless wireless and wired connections are provided, ideal for use in hospitality, education, retail, offices, and more.; Hassle-Free Cloud or On-Premises Controllers; Multi-Site Cloud Management; Zero-Touch Provisioning (ZTP); Intelligent Monitoring Advanced L3 Features. An abundance of L2+ and L3 features are supported to help build a highly scalable and robust network, providing a reliable and efficient solution for enterprises, campuses and ISPs.Secure Networking. Security features include IP-MAC-Port-VID Binding, Port Security, Storm Control, and DHCP Snooping to defend against a range of network threats. An integrated list of common DoS attacks is available, making it easier than ever to prevent them. In addition, the Access Control Lists (ACL, L2 to L4) feature restricts access to sensitive network resources by denying packets based on source and destination MAC address, IP address, TCP/UDP ports, or VLAN ID. Users' network access can be controlled via 802.1X authentication, which works with a RADIUS/Tacacs+ server to grant access only when valid user credentials are provided.


Brand NameTP-Link
Country of OriginChina
Depth13"
Environmental CertificationRoHS
Environmentally FriendlyYes
Ethernet Technology10 Gigabit Ethernet
Ethernet TechnologyGigabit Ethernet
Expansion Slot Type (I/O Expansions)SFP+
Expansion Slot TypeSFP+
Form FactorDesktop
Form FactorRack-mountable
Frequency50 Hz
Frequency60 Hz
Height1.7"
Input Voltage120 V AC
Input Voltage230 V AC
Layer Supported3
ManageableYes
Manufacturer Part NumberTL-SG3452XP
ManufacturerTP-LINK Technologies Co., Ltd
Media Type SupportedOptical Fiber
Media Type SupportedTwisted Pair
Modular (Interfaces/Ports)Yes
Network (RJ-45) (Interfaces/Ports)Yes
Network Technology1000Base-T
Network Technology10GBase-X
Number of SFP+ Slots (I/O Expansions)4
Number of Total Expansion Slots (I/O Expansions)4
Number of Total Expansion Slots4
Package ContentsJetStream TL-SG3452XP Ethernet Switch; Power Cord; Quick Installation Guide; Rackmount Kit; Rubber Feet
PoE (RJ-45) PortYes
PoE Budget500 W
Port/Expansion Slot Details (Interfaces/Ports)4 x 10 Gigabit Ethernet Expansion Slot
Port/Expansion Slot Details (Interfaces/Ports)48 x Gigabit Ethernet PoE+
Power Consumption49.19 W
Power SourcePower Supply
Product ColorBlack
Product FamilyJetStream
Product LineJetStream
Product ModelTL-SG3452XP
Product NameJetStream TL-SG3452XP Ethernet Switch
Product TypeEthernet Switch
Total Number of Network Ports (Interfaces/Ports)48
Total Number of Network Ports48
Uplink Port (Interfaces/Ports)Yes
Width17.3"
UPC840030702518
Weight (lbs)14.3000
MPNTL-SG3452XP
BrandTP-Link
