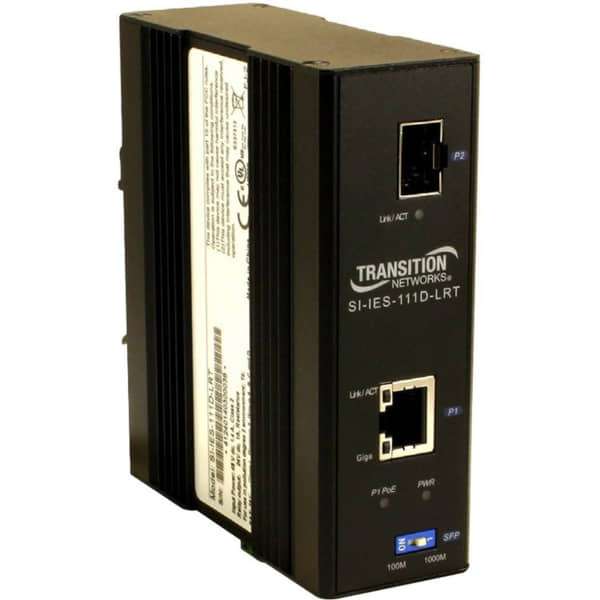

Transition Networks Hardened 1-port Mid-span PoE+ Injector, 48 V DC Input, 1 x Ethernet Input Port(s), 1 x 10/100/1000Base-T Output Port(s), 30 W
SKU
INGMXN5130
by Lantronix
$306.63 /EACH
Delivered in 2-4 business days
Out of stock
About Us:
Fast Shipping
62 warehouses nationwide
20 Years
Experience
Experience
Trusted since 2005
Category: Computers & Hardware
SI-IES-111D-LRT has one SFP slot and one RJ45 port. The RJ45 port supports 802.3at (PoE+), and can provide 30W for high powered application. The SFP slot provides more flexibility when planning and implementing the network. The slot can accept either a 100m or 1000m SFP module. This makes it possible to easily change the transmission mode and distance of the connection by using a different module. The SFP module is hot-swappable, and there is a dip switch to adjust the LFP function.
| Brand Name | Transition Networks |
|---|---|
| Certifications & Standards | IEEE 802.3; IEEE 802.3u; IEEE 802.3ab; IEEE 802.3at; IEEE 802.3z; IP30; UL508; FCC Class A; CE Mark; EN61000-6-4; EN61000-6-2; EN61000-4-2 (ESD); EN61000-4-3 (RS); EN61000-4-4 (EFT); EN61000-4-5 (Surge); EN61000-4-6(CS); EN61000-4-8 (Magnetic Field); IEC60068-2-27 (Shock); IEC60068-2-32 (Free fall); IEC60068-2-6 (Vibration) |
| Country of Origin | Taiwan |
| Depth | 3.7" |
| Environmental Certification | WEEE |
| Environmentally Friendly | Yes |
| Form Factor | External |
| Height | 4.3" |
| Input Ports (Interfaces/Ports) | 1 x Ethernet |
| Input Voltage | 48 V DC |
| Manufacturer Part Number | SI-IES-111D-LRT |
| Manufacturer | Transition Networks, Inc |
| Maximum Output Power | 30 W |
| Mount Type | DIN Rail/Wall Mountable |
| Output Ports (Interfaces/Ports) | 1 x 10/100/1000Base-T |
| Output Ports | 1 x 10/100/1000Base-T |
| Product Model | SI-IES-111D-LRT |
| Product Name | Hardened 1-port Mid-span PoE+ Injector |
| Product Type | PoE Injector |
| Width | 1.4" |
| Brand | Lantronix |
|---|---|
| Weight (lbs) | 1.3100 |
| UPC | 648177038671 |
| MPN | SI-IES-111D-LRT |
