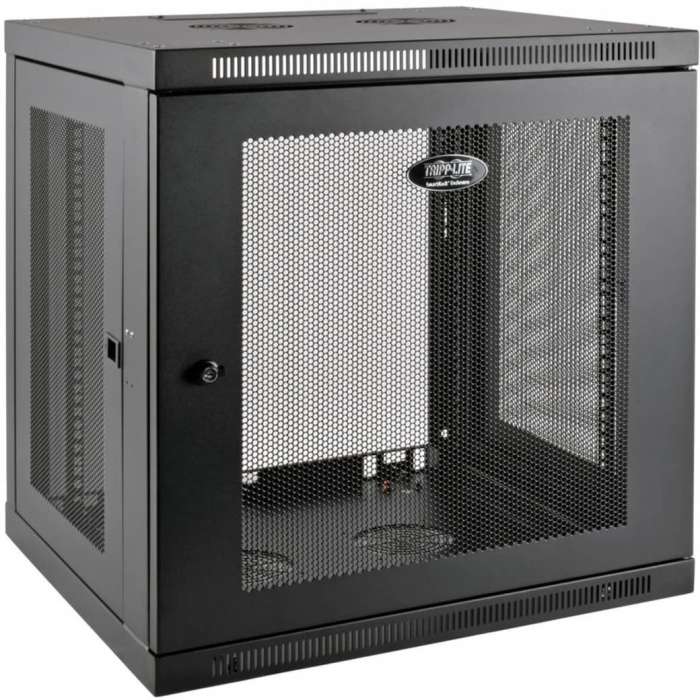

Tripp Lite 12U Wall Mount Rack Enclosure Cabinet Low Profile Deep Switch, For LAN Switch, Patch Panel, 12U Rack Height x 19" Rack Width x 20.50" Rack Depth, Wall Mountable, Black
Delivered in 2-4 business days
- Mounts to wall or rolls on floor (with optional SRCASTER).
- Secures 12U of 19 in. rack equipment up to 20.5 in. deep.
- Flow-through ventilation keeps equipment cool.
- Locking steel cabinet vented at sides, front, top and bottom.
- Maximum load capacity of 200 lb. .
The SRW12UDP SmartRack 12U Low-Profile Switch-Depth-Plus Wall-Mount Rack Enclosure Cabinet is designed to house EIA-standard 19-inch rack equipment in network wiring closets, retail locations, classrooms, back offices and other areas with limited floor space where you need equipment to be secure, organized and out of the way. Constructed from heavy-duty steel with a durable black powder-coated finish, the cabinet has a maximum load capacity of 200 pounds.To ensure your valuable equipment stays secure, the side panels and front door lock securely to help prevent damage, tampering or theft. The front, top, bottom and removable side panels are vented, which allows air to flow freely through the cabinet toand keep equipment cool. The reversible front door can open left or right by rotating the cabinet 180 before mounting. Convenient top and bottom ports allow easy cable routing through the cabinet.The SRW12UDP comes fully assembled and ready to mount to the wall, or use Tripp Lite's optional SRCASTER rolling caster kit to make it a mobile rack. Square and threaded mounting holes and numbered rack spaces make equipment installation easy. The vertical mounting rails adjust in 7/8-inch increments to accommodate equipment up to 20.5 inches deep, such as such as network switches and patch panels.
| Application/Usage | LAN Switch |
|---|---|
| Application/Usage | Patch Panel |
| Assembly Required | No |
| Brand Name | Tripp Lite |
| Country of Origin | China |
| Depth | 21.8" |
| Environmental Certification | RoHS |
| Environmentally Friendly | Yes |
| Features | Cable Management |
| Form Factor | Wall Mountable |
| Height | 25.1" |
| Manufacturer Part Number | SRW12UDP |
| Manufacturer | Tripp Lite by Eaton |
| Maximum Weight Capacity | 200 lb |
| Package Contents | SmartRack 12U Low-Profile Switch-Depth-Plus Wall-Mount Rack Enclosure Cabinet; 20 x M6 Screws; 20 x M6 Cage Nuts; 20 x M6 Washers; 20 x 12-24 Screws; 2 x Keys; Owner's Manual |
| Product Color | Black |
| Product Family | SmartRack |
| Product Line | SmartRack |
| Product Material | Steel |
| Product Model | SRW12UDP |
| Product Name | SmartRack 12U Low-Profile Switch-Depth-Plus Wall-Mount Rack Enclosure Cabinet |
| Product Type | Rack Cabinet |
| Rack Depth | 20.50" |
| Rack Height | 12U |
| Rack Width | 19" |
| Static/Stationary Weight Capacity | 200 lb |
| Weight (Approximate) | 58.40 lb |
| Width | 23.6" |
| Download PDF File |
| Brand | Tripp Lite |
|---|---|
| Weight (lbs) | 45.0000 |
| UPC | 037332191472 |
| MPN | SRW12UDP |
