Tripp Lite 12U Wall Mount Rack Enclosure Server Cabinet w/ Door & Side Panels, 12U Rack Height x 19" Rack Width, Wall Mountable, Black, 200 lb Maximum Weight Capacity

SKU
INGMPX7136
$573.54 /EACH

Delivered in 2-4 business days

In stock
  • Mounts to wall or rolls on floor (with optional SRCASTER).
  • Secures 12U of 19 in. rack equipment up to 16.5 in. deep.
  • Flow-through ventilation keeps equipment cool.
  • Locking steel cabinet vented at sides, front, top and bottom.
  • Maximum load capacity of 200 lb. .

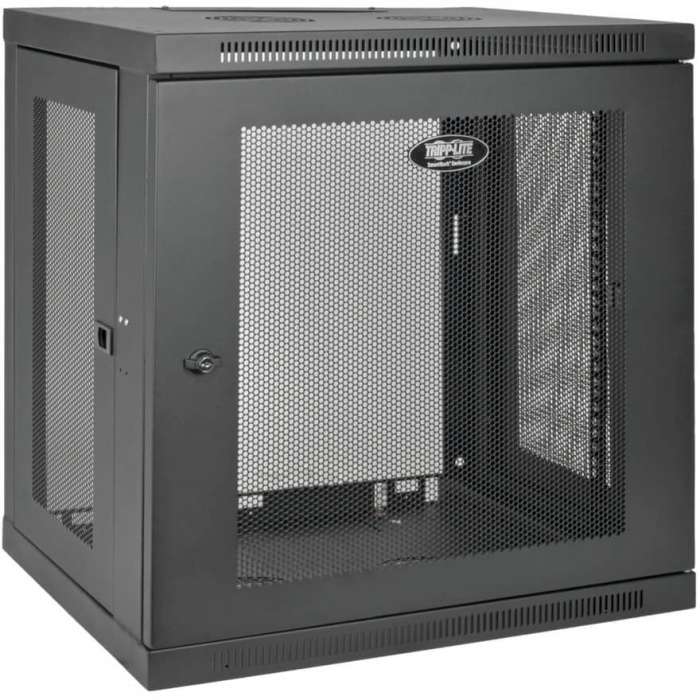

The SRW12U SmartRack 12U Low-Profile Switch-Depth Wall-Mount Rack Enclosure Cabinet is designed to house EIA-standard 19-inch rack equipment in network wiring closets, retail locations, classrooms, back offices and other areas with limited floor space where you need equipment to be secure, organized and out of the way. Constructed from heavy-duty steel with a durable black powder-coated finish, the cabinet has a maximum load capacity of 200 pounds.The side panels and front door lock securely to help prevent damage, tampering or theft. The front, top, bottom and removable side panels are vented, which allows air to flow freely and keep equipment cool. The reversible front door can open left or right by rotating the cabinet 180 before mounting. Convenient top and bottom ports allow easy cable routing. The SRW12U comes fully assembled and ready to mount to the wall, or use Tripp Lite's optional SRCASTER rolling caster kit to make it a mobile rack. Square and threaded mounting holes and numbered rack spaces make equipment installation easy. The vertical mounting rails adjust in 7/8-inch increments to accommodate equipment up to 16.5 inches deep, such as network switches and patch panels.


Additional InformationEIA-310-E Certification; Front and Back door frames; Adjustable mounting depths up to 17" inches; Ventilated front door and side panels for increased airflow; Fully assembled for quick installation; PCI-Compliant: meets stringent physical security requirements
Brand NameTripp Lite
Country of OriginChina
Depth17.7"
Environmental CertificationRoHS
Environmentally FriendlyYes
Form FactorWall Mountable
Height25.1"
Manufacturer Part NumberSRW12U
ManufacturerTripp Lite by Eaton
Maximum Weight Capacity200 lb
Package ContentsSmartRack 12U Wall-Mount Rack Enclosure Cabinet; 20 x M6 Screws; 20 x M6 Cage Nuts; 20 x M6 Washers; 2 x Keys; Owner's Manual
PCI-Compliantmeets stringent physical security requirements
Product ColorBlack
Product FamilySmartRack
Product LineSmartRack
Product ModelSRW12U
Product NameSmartRack 12U Wall-Mount Rack Enclosure Cabinet
Product TypeRack Cabinet
Rack Height12U
Rack Width19"
Weight (Approximate)48.50 lb
Width23.6"
Download PDF File
BrandTripp Lite
Weight (lbs)55.1000
UPC037332174451
MPNSRW12U
