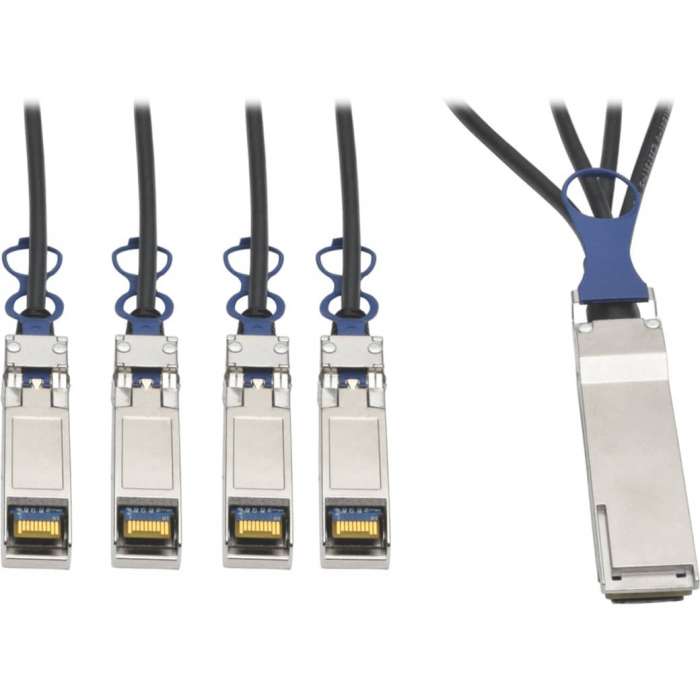

Tripp Lite 40GbE QSFP+ to 10GbE SFP+ Passive Copper Breakout Cable QSFP-4SFP10G-CU1M Compatible 2M 6.5' - QSFP+/SFP+ for Network Device, Switch, Server - 5 GB/s - 6.56 ft - 1 x QSFP+ Male Network - 4 x SFP+ Male Network - Black"
Delivered in 2-4 business days
- Supports serial data rates up to 40 Gbps
- Complies with MSA SFF-8431 and SFF-8436 specifications
- SDR, DDR and QDR compatible
- Zinc die-cast QSFP+ and SFP+ male connectors
- Pull-tab ejectors for quick, easy connections
The N281-02M-BK 40 GbE QSFP+ to 10 GbE SFP+ Passive DAC Copper Breakout Cable provides next-generation performance by connecting your 40 GbE QSFP+ system to four 10 GbE SFP+ servers, switches and/or adapters. It's ideal for connecting active network equipment in data centers, high-end servers and enterprise wiring closets. This two-meter hot-pluggable cable features zinc die-cast QSFP+ and SFP+ male connectors for superior EMI resistance, minimal insertion loss and low crosstalk for better performance. Ergonomic pull-tab ejectors make connecting to equipment a quick, easy task. Eight-pair wire technology is optimized for bandwidth-intense applications, including 40-Gigabit Ethernet (40GBASE-CR4), 10GBASE-CR4, 6G SAS, Fibre Channel and SONET.Flexible 30 AWG conductors maintain a smooth high-frequency response (20 GHz). The N281-02M-BK undergoes a rigorous assembly and testing procedure aimed at eliminating unnecessary signal loss. It's fully compliant with the MSA (Multi-Source Agreement) SFF-8431 and SFF-8436 architecture for guaranteed compatibility with all QSFP and QSFP+ ports. Compatible with SDR, DDR and QDR.
Cable Length | 6.60 ft |
---|---|
Product Type | Network Cable |
Brand Name | Tripp Lite |
Cable Type | QSFP+/SFP+ |
Connector Type on First End | QSFP+ Network - Male |
Connector Type on Second End | SFP+ Network - Male |
Product Color | Black |
Download PDF File |
UPC | 037332193100 |
---|---|
Weight (lbs) | 805.0000 |
MPN | N281-02M-BK |
Brand | Tripp Lite |
