Tripp Lite 4x4 HDMI Matrix Switch Video/Audio 1920x1200 @ 60Hz/1080p TAA, 1920x1080 at 60Hz / 1080p
SKU
INGMUU9565
by Tripp Lite
$401.54
Delivered in 2-4 business days
Out of stock
About Us:
Fast Shipping
62 warehouses nationwide
20 Years
Experience
Experience
Trusted since 2005
Category: Computers & Hardware

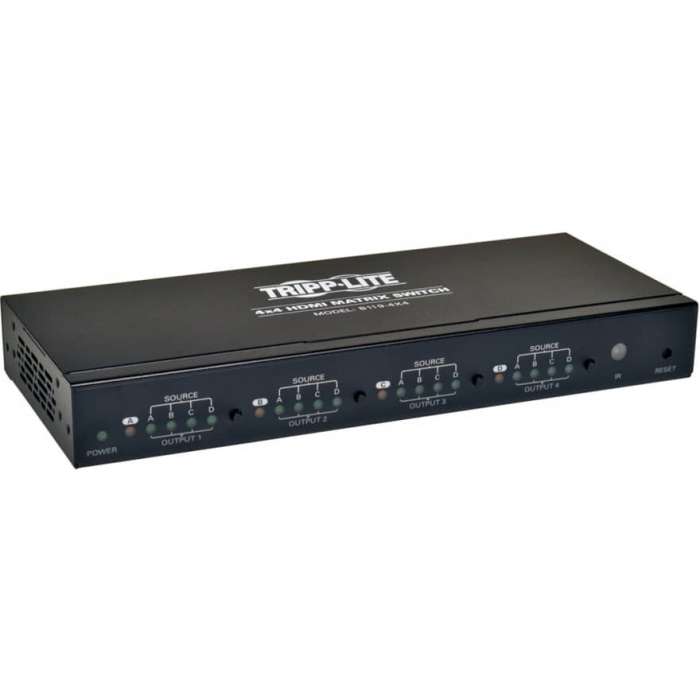

Tripp Lite B119-4X4 is a 4x4 HDMI Matrix Switch that routes high definition video from any four HDMI sources to any four HDMI displays. It supports video resolutions up to 1920 x 1080 (1080p) @ 60Hz. The 4x4 Matrix eliminates the need to disconnect and reconnect HDMI sources. It works with any HDMI source that connects to an HDMI display, and each source is accessible at all times by any display by selecting it with an IR remote, or using the RS232 port to switch the unit.
| Brand Name | Tripp Lite |
|---|---|
| Certifications & Standards | TAA |
| Country of Origin | Taiwan |
| Depth | 3.9" |
| Device Supported | Display |
| Environmental Certification | RoHS |
| Environmentally Friendly | Yes |
| Graphics Modes (Video) | Full HD |
| HDMI In (Interfaces/Ports) | Yes |
| HDMI In | Yes |
| HDMI Out (Interfaces/Ports) | Yes |
| HDMI Out | Yes |
| Height | 1.2" |
| Input Voltage | 5 V DC |
| Manufacturer Part Number | B119-4X4 |
| Manufacturer | Tripp Lite by Eaton |
| Maximum Video Resolution (Video) | 1920 x 1080 |
| Number of Displays Supported | 4 |
| Number of HDMI Inputs (Interfaces/Ports) | 4 |
| Number of HDMI Outputs (Interfaces/Ports) | 4 |
| Number of Input Devices Supported | 4 |

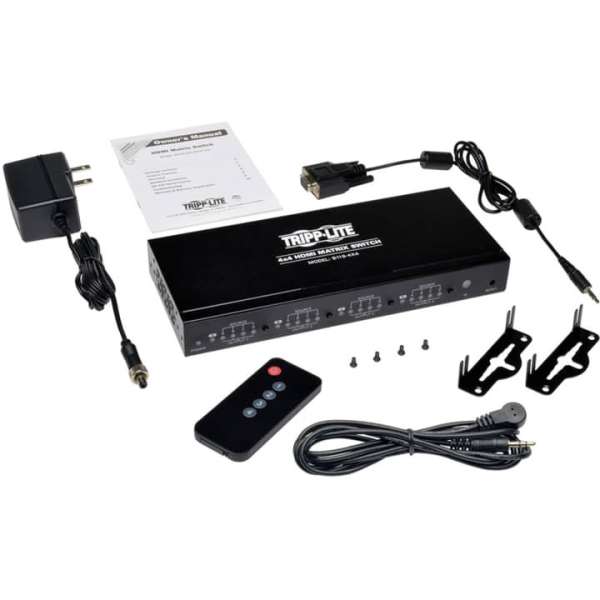

| Package Contents | 4x4 High Speed HDMI Video Matrix Switch with Audio 1920x1200 at 60Hz / 1080p; External Power Supply with NEMA 1-15P Plug (Input: 100-240V, 50/60Hz, 0.5A Output: 5V, 3A); 3.5 mm to DB9 Adapter Cable; Mounting Hardware; Remote Control; Owner's Manual |
| Product Color | Black |
| Product Model | B119-4X4 |
| Product Name | 4x4 High Speed HDMI Video Matrix Switch with Audio 1920x1200 at 60Hz / 1080p |
| Product Type | Audio/Video Switchbox |
| Serial Port (Interfaces/Ports) | Yes |
| TAA Compliant | Yes |
| Weight (Approximate) | 1.45 lb |
| Width | 9.2" |
| Download PDF File |
| Brand | Tripp Lite |
|---|---|
| Weight (lbs) | 2.4000 |
| UPC | 037332180179 |
| MPN | B119-4X4 |
