Tripp Lite 700VA 420W 120V Line-Interactive UPS, 4 NEMA 5-15R Outlets, Network Card Option, USB, DB9, 1U Rack/Tower, 1U Rack/Tower, AVR, 6 Hour Recharge

SKU
INGM00HT45
$612.22

Delivered in 2-4 business days

Out of stock
  • Protects equipment against blackouts, brownouts, transient surges and line noise.
  • Keeps AC power running during outages to allow time for file saves and safe shutdown.
  • Maintains continuous 120V nominal output during brownouts as low as 90V.
  • 5-15R outlets power and protect networking, telecom and other sensitive equipment.
  • Optional WEBCARDLX with the latest version of PADM for enhanced remote management.
  • 2-year warranty, 3 year with registration. .

700VA/420W/120V Battery Backup for PC Networks, Security Systems or Digital SignageThis SmartPro line-interactive UPS system with AVR provides reliable battery backup and AC power protection against blackouts, brownouts, surges and line noise that can damage valuable electronics or destroy data. The SMART700RT1U is ideal protection for point-of-sale and kiosk applications, a small-business VoIP network or rack-mount equipment, such as servers and switches, in your server room or network closet. Reliable Battery Backup Keeps You Operational Through Power OutagesThe field-replaceable, hot-swappable internal battery provides 10 minutes of support at half load (210W) and two minutes at full load (420W), allowing you to work through short power failures and giving you enough time to safely save files and shut down your system in case of a prolonged blackout. Automatically Turns Back On After Power Is RestoredBattery-independent restart ensures automatic UPS power-up without user interaction after lengthy power outages, even when batteries are expired and require replacement. Optional WEBCARDLX Network Interface Offers 24/7 Remote Access for Monitoring and ControlThe optional WEBCARDLX (sold separately) with the latest version of PowerAlert Device Manager firmware (PADM) provides enhanced remote management capabilities, including customizable dashboard graphs to fit user preferences. The latest version of PADM firmware and Tripp Lite's PowerAlert Element Manager (PAEM) software form a powerful tool for expanding maintenance functions in large installations, including firmware update checks and backup and restoration of device configurations. NEMA 5-15R Outlets Protect Your Connected ComponentsFour 5-15R outlets in two separate load banks provide connected equipment with pure sine wave AC output during blackouts, overvoltages and severe brownout conditions. Power provided by these outlets is filtered to protect connected equipment against damaging surges and line noise. Automatic Voltage Regulation (AVR) Corrects Low- and High-Voltage ConditionsAVR protects your equipment from incremental hardware damage, data loss and performance problems caused by brownouts. The SMART700RT1U maintains regulated 120V nominal output during brownouts as low as 90V, while keeping the battery fully charged and ready to take over in case of power failure. Premium Protection from EMI/RFI Line Noise Helps Your Equipment Perform BetterThis UPS system filters out disruptive electromagnetic and radio frequency interference that can inflict hardware damage or data loss. This EMI/RFI filtering also helps your connected components perform better and last longer.


AlarmLow Battery
AlarmOverload
AlarmPower Failure
Application/UsageComputer
Application/UsageDigital Signage
Application/UsageIT Equipment
Application/UsageNetwork Closet
Application/UsageSecurity System
Application/UsageServer Room
Application/UsageSwitch
Application/UsageVoIP
AVRYes
Backup/Run Time (Full Load)3 Minute
Backup/Run Time (Half Load)10 Minute
Battery CharacteristicsValve-regulated
Battery ChemistryLead Acid
Brand NameTripp Lite
Country of OriginChina
DC System Voltage24 V DC
Depth20"
EMI/RFI Noise FilterYes
Energy StarYes
Environmental CertificationRoHS
Environmentally FriendlyYes
EPO Port (Interfaces/Ports)Yes
Form FactorRack/Tower
Height1.7"
Hot SwappableYes
Input Voltage120 V AC
Load Capacity (VA)700 VA
Load Capacity (W)420 W
Manufacturer Part NumberSMART700RT1U
ManufacturerTripp Lite by Eaton
Maximum Operating Elevation3280 ft
Maximum Operating Temperature104F (40C)
Network ManagementSNMP/Webcard
Output Frequency60 Hz
Output Voltage100 V AC
Output Voltage120 V AC
Output Voltage127 V AC

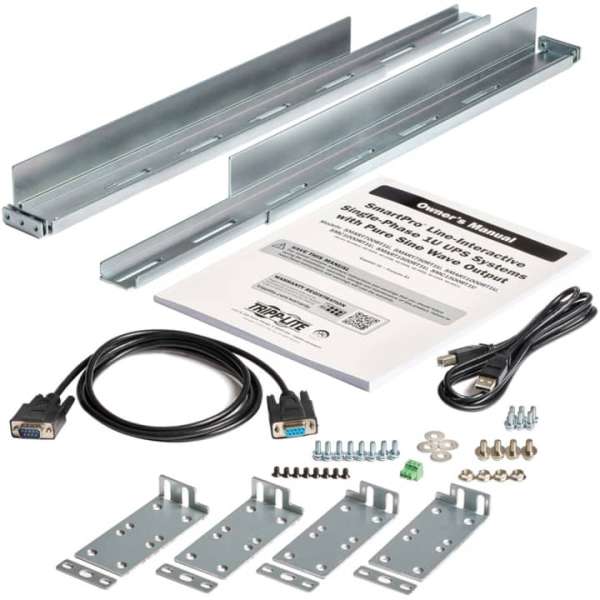

Package ContentsSMART700RT1U 700VA Rack/Tower UPS; USB Cable; DB9 Cable; EPO/ROO Connector; Rack-mounting Hardware; Owner's Manual
PhaseSingle Phase
Plug/Connector TypeNEMA 5-15P
Product FamilySmartPro
Product LineSmartPro
Product ModelSMART700RT1U
Product NameSMART700RT1U 700VA Rack/Tower UPS
Product TypeLine-interactive UPS
Rack Height1U
Receptacle Detail4 x NEMA 5-15R
Receptacle TypeNEMA 5-15R
Replaceable BatteryYes
Serial Port (Interfaces/Ports)Yes
Sound Emission (A-Weighted)40 dB(A)
Status Indicators (Controls/Indicators)LCD Display
Surge Energy Rating540 J
Thermal Dissipation14.07 W
Transfer Time8 ms
Typical Battery Recharge Time6 Hour
USB (HID Compliant) Port (Interfaces/Ports)Yes
Waveform TypePure Sine Wave
Weight (Approximate)22.49 lb
Width17.3"
Download PDF File
BrandTripp Lite
Weight (lbs)35.0000
UPC037332239273
MPNSMART700RT1U
