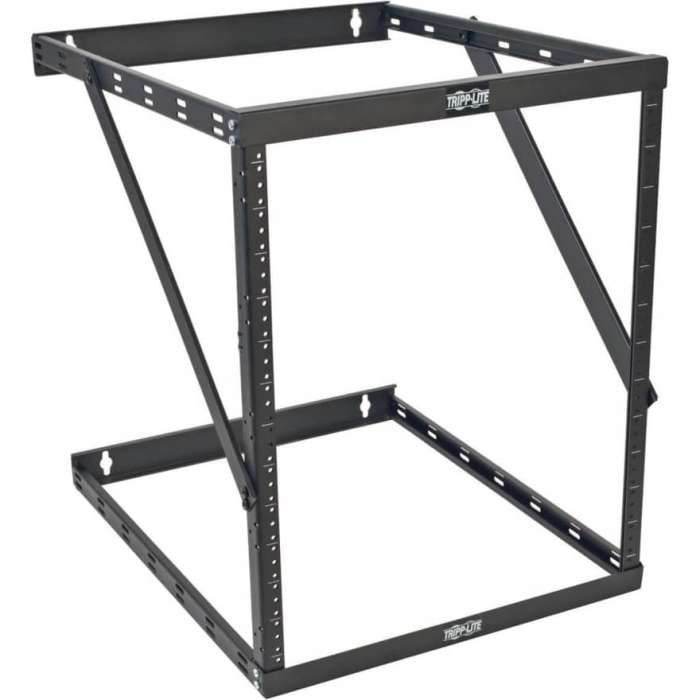

Tripp Lite 8U 12U 22U 2 Post Open Frame Rack Cabinet Expandable 23.5" Depth Wall Mount, For UPS, Patch Panel, LAN Switch, 22U Rack Height x 19" Rack Width x 23.50" Rack Depth, Wall Mountable, Black Powder Coat

SKU
INGM2T2168
$229.87 /EACH

Delivered in 2-4 business days

In stock
  • Easy to assemble with included hardware.
  • Heavy-duty steel construction designed to last.
  • Configures to 8U, 12U or 22U of rack space.
  • Maximum load capacity of 150 lb..
  • Secures 19 in. rack equipment up to 23.5 in. deep .

The SRWO8U22DP SmartRack 8U/12U/22U Expandable Low-Profile UPS-Depth Wall-Mount 2-Post Open-Frame Rack is ideal for storing UPS systems, battery packs, power cords, network switches, patch panels and related cabling in secure IT areas with limited floor space. Mounted to the wall or resting on the floor, this rack offers fast, easy access to components and cabling. It's compatible with EIA-standard 19-inch rack equipment that supports two-post mounting and a maximum mounting depth of 23.5 inches.Constructed from heavy-duty steel in a durable black powder-coated finish, the open-frame rack has a maximum load capacity of 150 pounds. The expandable design allows you to assemble the rack in an 8U, 12U or 22U configuration to meet your current needs, while leaving rack space in reserve for future expansion. It saves precious space and allows IT managers easy access for organizing, installing and servicing equipment and cabling.The rack is easy to assemble using the included hardware. The vertical mounting rails have threaded 12-24 holes for securing equipment to the steel frame.


Application/UsageLAN Switch
Application/UsagePatch Panel
Application/UsageUPS
Assembly RequiredYes
Brand NameTripp Lite
Country of OriginChina
Depth24"
Environmental CertificationRoHS
Environmentally FriendlyYes
Form FactorWall Mountable
Height42.3"
Manufacturer Part NumberSRWO8U22DP
ManufacturerTripp Lite by Eaton
Maximum Weight Capacity150 lb
Package ContentsSmartRack SRWO8U22DP Rack Frame; 24 x 12-24 equipment mounting screws; 16 x M5 button-head cap screws; 8 x M6 x 12 Phillips-head screws; 2 x Short vertical mounting rails; 2 x Long vertical mounting rails; 2 x Mounting rail tie plates; 2 x Metal support straps; 2 x Top/bottom panel frames; 8 x Zip ties; 3 mm L-shaped hex key; Owner's manual
Product ColorBlack Powder Coat
Product FamilySmartRack
Product LineSmartRack
Product MaterialSteel
Product ModelSRWO8U22DP
Product NameSmartRack SRWO8U22DP Rack Frame
Product TypeRack Frame
Rack Depth23.50"
Rack Height22U
Rack Width19"
Weight (Approximate)16.87 lb
Width20.1"
Download PDF File
BrandTripp Lite
Weight (lbs)20.0000
UPC037332187420
MPNSRWO8U22DP
