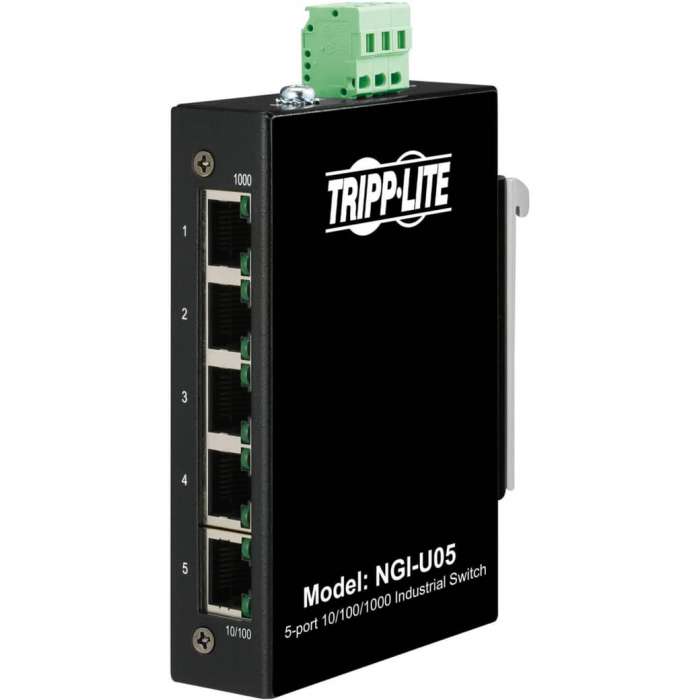

Tripp Lite Ethernet Switch Unmanaged 5-Port Industrial 10/100/1000 Mbps TAA, 5 Ports, Gigabit Ethernet, 10/100/1000Base-T, TAA Compliant

Industrial-grade switch expands Ethernet connectivity to factory floors and other environments with space constraints and wide temperature ranges.Features

5-Port Unmanaged Ethernet Switch Connects Your Devices to a LANThis space-saving Tripp Lite switch transmits data over a Gigabit Ethernet network. Five auto-negotiating 10/100/1000 Mbps ports send data only to the devices designated to receive it, which improves the efficiency and potential throughput of the network. Ruggedized Metal Housing Built to Last in Harsh EnvironmentsThe compact NGI-U05 adds 10/100/1000 Mbps Gigabit Ethernet capacity to your industrial and commercial applications, such as factory floors, warehouse operations and other environments with space constraints and wide temperature ranges. The industrial-grade high-strength case withstands vibration, shock and free fall. It can also operate in extreme temperatures ranging from -40 degrees to 167 degrees Fahrenheit. Unmanaged Switch Requires Little to No ConfigurationQuickly connect your network devices with little to no configuration. LEDs indicate when the switch is powered on and which Ethernet ports are showing activity. The NGI-U05 supports MAC address autolearning and auto-aging for efficient routing, as well as automatic MDI/MDI-X crossover detection for plugand-play functionality. IEEE 802.3x flow control allows smooth transmission of large files. Flexible Mounting Options The NGI-U05 may be DIN mounted using the pre-installed rail clip, which mounts firmly to any standard 35 mm DIN rail. It may also be wall mounted vertically or horizontally using the rear mounting holes. A 3- pin 9-48VDC terminal block supplies power input. Device power must be supplied by LPS (Limited Power Source) circuit.TAA-Compliant for GSA Schedule Purchases The NGI-U05 is compliant with the Federal Trade Agreements Act (TAA), which makes it eligible for GSA (General Services Administration) Schedule and other federal procurement contracts.
