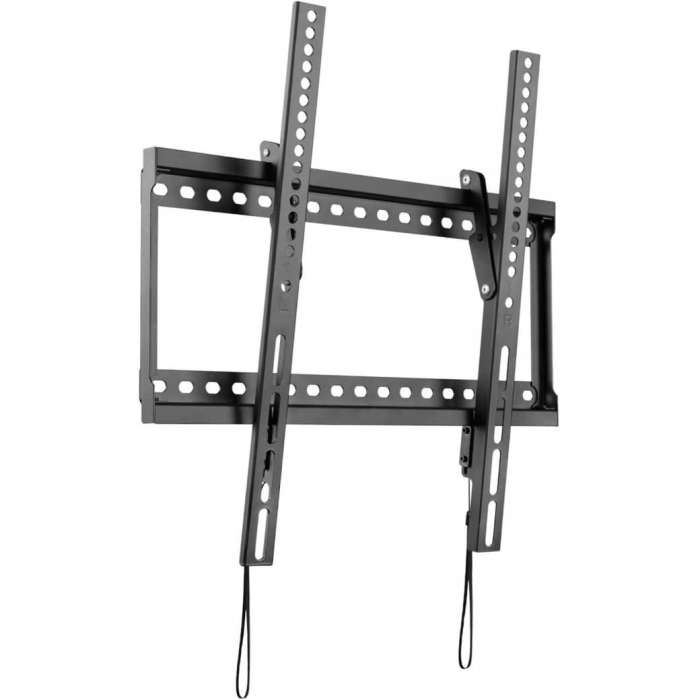

Tripp Lite Heavy-Duty Tilt Wall Mount for 26" to 70" Curved or Flat-Screen Displays, 1 Display(s) Supported, 26" to 70" Screen Support, 165 lb Load Capacity, 50 x 50, 75 x 75, 100 x 100, 100 x 150, 100 x 200, 150 x 100, 150 x 150, 200 x 100, 200 x 200, 20
Delivered in 2-4 business days
- Accepts most popular curved and flat-screen displays from 26 to 70 in. up to 165 lb. (75 kg.).
- Automatic spring locks with quick-release cords ensure quick and easy display removal.
- Adjustable horizontal mounting rails help compensate for off-center wall studs.
- Open-back architecture enables easy access to cables and power cords.
- Conforms to current VESA standards to ensure compatibility with your display.
- 5-year limited warranty .
Mounts Your TV or Monitor on the Wall for a Perfect Viewing AngleRecommended for home theaters, classrooms, conference rooms, hotels, bars, restaurants or anywhere else you may want to show off a television or monitor, this low-profile TV wall mount is hidden out of sight behind the display for a sleek, professional appearance. It fits most curved- and flat-screen displays from 26 to 70 inches and up to 165 pounds (75 kilograms). Tilt Feature Lets You Adjust the Viewing Angle to Your SpecificationsYou can adjust the horizontal angle of your display from -8 to +0. This will minimize glare on the screen and allow you to customize the angle for comfortable viewing. Durable All-Metal Construction Provides Convenient Cable AccessThe DWT2670XE is constructed from heavy-duty steel with a powder-coated black finish that resists scratches. Its open frame design with smooth edges enables easy access to cabling. Horizontal mounting rails adjust to compensate for off-center wall studs. Removing and replacing the display is fast and simple using the automatic spring locks with quick-release cords. VESA-Compliant Mounting Ensures Display CompatibilityVESA (Video Electronics Standards Association) promotes uniformity in the video electronics industry by developing standards for TVs and monitors. For hassle-free display compatibility, this mount supports the following VESA mounting hole patterns: 50 x 50, 75 x 75, 100 x 100, 100 x 150, 100 x 200, 150 x 100, 150 x 150, 200 x 100, 200 x 200, 200 x 400, 300 x 200, 300 x 300, 350 x 350, 400 x 200, 400 x 300 and 400 x 400. Mounting hardware is included.
| Application/Usage | Stud |
|---|---|
| Application/Usage | Wall |
| Brand Name | Tripp Lite |
| Country of Origin | China |
| Depth | 1.5" |
| Device Supported | Curved Screen Display |
| Device Supported | Flat Panel Display |
| Device Supported | HDTV |
| Device Supported | Monitor |
| Environmental Certification | REACH |
| Environmental Certification | RoHS 3 |
| Environmentally Friendly | Yes |
| Features | -8/0 Tilt |
| Features | Adjustable Angle |
| Features | Heavy Duty |
| Features | Horizontal Adjustment |
| Features | Quick Release Mechanism |
| Features | Scratch Resistant |
| Features | Spring Lock |
| Features | Tilt |
| Finishing | Black Powder Coat |
| Height | 16.5" |
| Manufacturer Part Number | DWT2670XE |
| Manufacturer | Tripp Lite by Eaton |
| Maximum Load Capacity | 165 lb |
| Maximum Screen Size Supported | 70" |
| Minimum Screen Size Supported | 26" |
| Mount Profile | Low Profile |
| Mounting Pattern | 100 x 100 |
| Mounting Pattern | 100 x 150 |
| Mounting Pattern | 100 x 200 |
| Mounting Pattern | 150 x 100 |
| Mounting Pattern | 150 x 150 |
| Mounting Pattern | 200 x 100 |
| Mounting Pattern | 200 x 200 |
| Mounting Pattern | 200 x 400 |
| Mounting Pattern | 300 x 200 |
| Mounting Pattern | 300 x 300 |
| Mounting Pattern | 350 x 350 |
| Mounting Pattern | 400 x 200 |
| Mounting Pattern | 400 x 300 |
| Mounting Pattern | 400 x 400 |
| Mounting Pattern | 50 x 50 |
| Mounting Pattern | 75 x 75 |
| Number of Displays Supported | 1 |
| Package Contents | Heavy-Duty Tilt Wall Mount for 26" to 70" Curved or Flat-Screen Displays; Mounting hardware; Owner's manual |
| Product Color | Black |
| Product Material | Steel |
| Product Model | DWT2670XE |
| Product Name | Heavy-Duty Tilt Wall Mount for 26" to 70" Curved or Flat-Screen Displays |
| Product Type | Wall Mount |
| VESA Mount Compatible | Yes |
| Weight (Approximate) | 2.64 lb |
| Width | 17.2" |
| Download PDF File |
| Brand | Tripp Lite |
|---|---|
| Weight (lbs) | 3.3900 |
| UPC | 0037332275776 |
| MPN | DWT2670XE |
