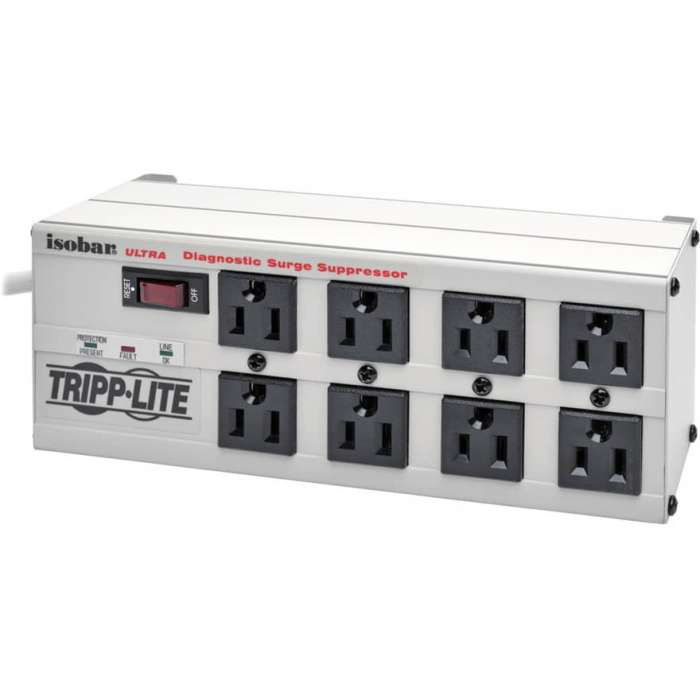

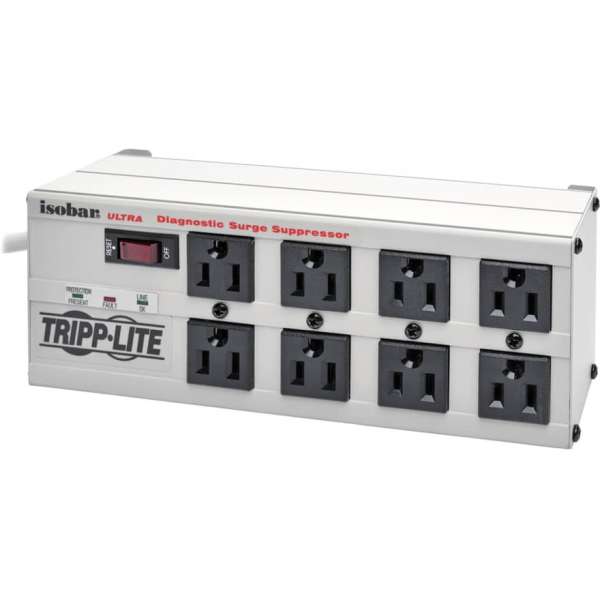

Tripp Lite Isobar 8-Outlet Surge Protector 25 ft. Cord with Right-Angle Plug 3840 Joules Diagnostic LEDs Metal Housing, Receptacles: 8 x NEMA 5-15R, 3840J
Delivered in 2-4 business days
- High-quality materials offer high level of protection in multi-outlet strip
- Near indestructible all-metal case provides durable, long-lasting use
- Sine-wave tracking offers extreme levels of protection against heavy surges
- Exclusive, isolated filter banks remove EMI/RFI interference
- Surge suppression rated at 3840 joules offers network-grade protection
For more than 20 years, America's leading companies have trusted Tripp Lite's Isobar Premium surge and noise suppressors to protect sensitive computer, networking and telecom equipment. With more than 18 million satisfied customers, the Isobar remains the world's #1 selling premium surge suppressor. Loaded with a generous combination of high quality components, near indestructible all-metal case and unique noise filtration system, the Isobar offers the highest level of protection attainable in a multi-outlet strip. Robust surge suppression circuits with sine-wave tracking offer extreme levels of protection against the heaviest surge conditions exceeding IEEE 587 category A & B specifications and reducing 6,000V test surges to harmless levels under 35 volts. Isobar's unique protection system combines large toroidal chokes, ferrite rod-core inductors, HF/VHF capacitors and multiple layers of metal oxide varistors into exclusive isolated filter banks that remove EMI/RFI interference, even noise generated by other pieces of connected equipment. ISOBAR825ULTRA offers 8 outlets arranged in four filter banks to prevent system crashes, reboots and performance problems common as noisy system peripherals are powered off and on. Surge suppression rated at 3840 joules/97,000 amps offers network-grade protection. Widely spaced NEMA 5-15 outlets accommodate up to 4 large transformer plugs without blocking outlets. Diagnostic LEDs confirm power availability, line fault and protection status. Includes 25 foot AC line cord with space-saving angled input plug, keyhole mounting tabs and a set of 4 child safety covers.PLUG/OUTLETS: Input: NEMA 5-15P/Output: 8 NEMA5-15R/25-ft. AC line cordELECTRICAL: 120V AC, 50/60Hz (Requires NEMA 5-15R wall receptacle)SUPPRESSION: AC: 140V RMS Clamping/3840 joules/97,000 ampsFORMAT: Corded all-metal strip with transformer spaced outlets
| Brand Name | Tripp Lite |
|---|---|
| Compatibility | Computers; Networks; CAD/CAM/CAE Workstations; Internetworking Accessories; Telecommunications Systems; Point of Sale Equipment; Audio/Video & Home Theater Systems |
| Country of Origin | China |
| Depth | 3.5" |
| Environmental Certification | RoHS |
| Environmentally Friendly | Yes |
| Height | 2.5" |
| Input Voltage | 120 V AC |
| Manufacturer Part Number | ISOBAR825ULTRA |
| Manufacturer | Tripp Lite by Eaton |
| Maximum Line Current | 15 A |
| Maximum Surge Current | 97 kA |
| Output Voltage | 120 V AC |
| Package Contents | Isobar ISOBAR825ULTRA 8-Outlet Surge Suppressor; Set of 4 Outlet Safety Covers; Instruction Manual with Warranty Information |
| Plug/Connector Type | NEMA 5-15P |
| Power Cord/Cable Length | 25 ft |
| Power Handling | 1440 VA |
| Product Family | Isobar |
| Product Line | Isobar |
| Product Model | ISOBAR825ULTRA |
| Product Name | Isobar ISOBAR825ULTRA 8-Outlet Surge Suppressor |
| Product Type | Surge Suppressor/Protector |
| Receptacles | 8 x NEMA 5-15R |
| Shipping Depth | 12.50" |
| Shipping Height | 3.30" |
| Shipping Weight (Approximate) | 5.10 lb |
| Shipping Width | 7.90" |
| Surge Energy Rating | 3840 J |
| Weight (Approximate) | 3.30 lb |
| Width | 9" |
| Download PDF File |
| Brand | Tripp Lite |
|---|---|
| Weight (lbs) | 3.8500 |
| UPC | 037332138286 |
| MPN | ISOBAR825ULTRA |
