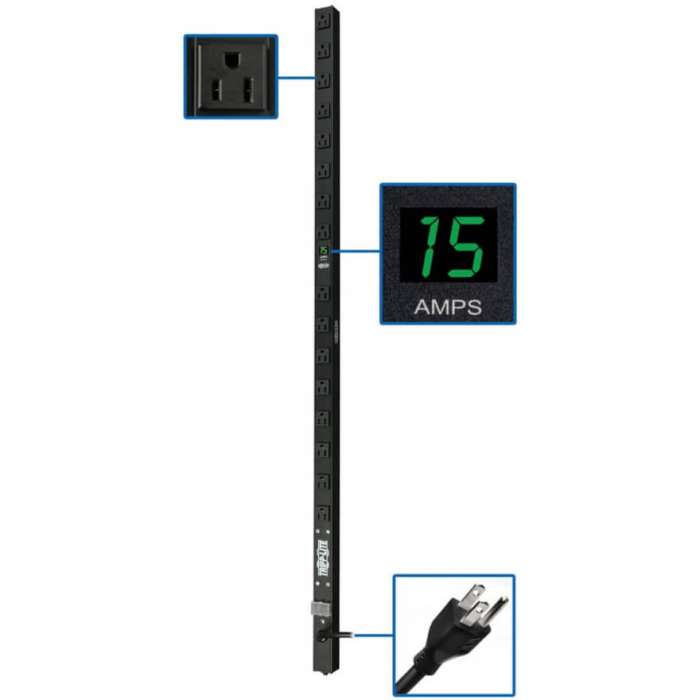

Tripp Lite PDU 1.4kW Single-Phase Local Metered PDU 120V Outlets (16 5-15R) 5-15P 15 ft. (4.57 m) Cord 0U Vertical 48 in., 16 x NEMA 5-15R, 1.8kVA, Zero U Vertical Rackmount
SKU
INGML81874
by Tripp Lite
$255.88 /EACH
Delivered in 2-4 business days
Out of stock
- Toolless button mount and bolt-down bracket installation hardware included.
- Attached 15ft / 4.5m cord with NEMA 5-15P input plug.
- 16 NEMA 5-15R outlets.
- Two-digit current meter reports output current in amps.
- Metered single phase 15A 120V 0U 48in / 122cm vertical rackmount PDU .
About Us:
Fast Shipping
62 warehouses nationwide
20 Years
Experience
Experience
Trusted since 2005
Category: Power Distribution Units
Tripp Lite's PDUMV15 metered power distribution unit offers 15 amp, 120V multi-outlet AC power distribution in a convenient 48-inch mountable housing. Digital current meter displays the power consumption of connected equipment. Offers vertical power distribution in rackmount, raceway, and workbench applications. Includes 16 NEMA 5-15R output receptacles, 15 ft. AC line cord, and lighted power switch with locking transparent cover to prevent accidental shutoff. Sturdy all-metal extruded aluminum housing stands up to demanding network, laboratory, or factory enviroments. Unfiltered electrical pass-through makes the PDUMV15 ideal for distributing alternate waveform UPS or generator power in rack enclosures, network closets and more. Included 16 NEMA5-15R outlets, 15-ft. AC power cord with 5-15P plug, 15 amp circuit breaker in rugged metal case design.PLUG/OUTLETS-Input: NEMA 5-15P/Output: 16 NEMA 5-15RELECTRICAL - 120V AC, 50/60Hz, 15AFORMAT - 48 inch mountable strip format
| Brand Name | Tripp Lite |
|---|---|
| Certifications & Standards | UL60950-1; CAN/CSA C22.2 No. 60950-1-03; RoHS Compliant |
| Circuit Breaker | Yes |
| Cord Length | 15 |
| Country of Origin | China |
| Depth | 1.5" |
| Environmentally Friendly | Yes |
| Height | 3" |
| Input Voltage | 120 V AC |
| Manufacturer Part Number | PDUMV15 |
| Manufacturer | Tripp Lite by Eaton |
| Mount Type | Rack-mountable |
| Mounting Orientation | Vertical |
| Output Voltage | 120 V AC |
| Package Contents | PDUMV15 PDU Metered 120V 15A 16 Outlet; PDUMV15 Metered Vertical PDU; Mounting hardware; 6 outlet safety covers; Owner's manual with warranty information |
| Plug/Connector Type | NEMA 5-15P |
| Power Rating (VA) | 1800 VA |
| Product Model | PDUMV15 |
| Product Name | PDUMV15 PDU Metered 120V 15A 16 Outlet |
| Product Type | PDU |
| Protection Type | Overload Protection |
| Receptacle Detail | 16 x NEMA 5-15R |
| Receptacle Type | NEMA 5-15R |
| Weight (Approximate) | 3.80 lb |
| Width | 48" |
| Download PDF File |
| Brand | Tripp Lite |
|---|---|
| Weight (lbs) | 4.6000 |
| UPC | 037332132536 |
| MPN | PDUMV15 |
