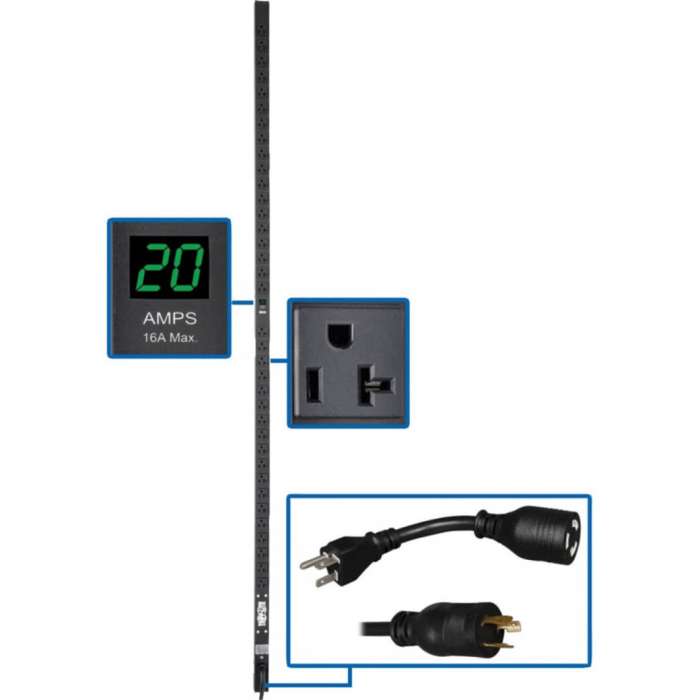

Tripp Lite PDU Metered 120V 20A 5-15/20R 36 Outlet L5-20P 72" Height 0URM, 72 Inch Height Vertical Rackmount 0URM
SKU
INGMZG8013
by Tripp Lite
$344.51 /EACH
Delivered in 2-4 business days
Out of stock
- Toolless button mount and bolt-down bracket installation hardware included.
- 36 NEMA 5-15/20R outlets.
- Attached 15ft / 4.6m cord with NEMA L5-20P plug and 5-20P adapter.
- Two-digit current meter reports output current in amps.
- Metered single phase 120V 20A 0U 72-in. / 61cm vertical rackmount PDU .
About Us:
Fast Shipping
62 warehouses nationwide
20 Years
Experience
Experience
Trusted since 2005
Category: Power Distribution Units
Tripp Lite single phase Metered PDU / Power Distribution Units offer real-time local reporting of load level in amps via built-in digital display. Enables visual monitoring of PDU load levels to prevent overloads as additional equipment is added. Offers reliable rackmount multi-outlet power distribution from any protected UPS, generator or mains input power source. High quality design includes rugged all-metal housing and secure rackmount installation with included mounting accessories.
| Brand Name | Tripp Lite |
|---|---|
| Certifications & Standards | Tested to UL60950-1 (USA); UL/CSA60950-1 (Canada); NOM (Mexico); FCC Class A (Emissions) |
| Cord Length | 15 ft |
| Country of Origin | China |
| Depth | 1.3" |
| Environmental Certification | RoHS |
| Environmentally Friendly | Yes |
| Height | 72" |
| Input Current | 20 A |
| Input Voltage | 120 V AC |
| Manufacturer Part Number | PDUMV20-72 |
| Manufacturer | Tripp Lite by Eaton |
| Mount Type | Rack-mountable |
| Mounting Orientation | Vertical |
| Output Voltage | 120 V AC |
| Package Contents | PDUMV20-72 Metered Vertical PDU; 1 x L5-20P to 5-20P Plug Adapter; Mounting Hardware; Spare Mounting Buttons; Instruction Manual with Warranty Information |
| Plug/Connector Type | NEMA L5-20P |
| Power Rating (Watt) | 2000 W |
| Product Family | Metered |
| Product Line | Metered |
| Product Model | PDUMV20-72 |
| Product Name | PDUMV20-72 Metered Vertical PDU |
| Product Type | PDU |
| Protection Type | Overload Protection |
| Rack Height | 0U |
| Receptacle Detail | 36 x NEMA 5-15/20R |
| Receptacle Type | NEMA 5-15/20R |
| Weight (Approximate) | 5.51 lb |
| Width | 1.8" |
| Download PDF File |
| Brand | Tripp Lite |
|---|---|
| Weight (lbs) | 8.1000 |
| UPC | 037332182838 |
| MPN | PDUMV20-72 |
