Tripp Lite Rack Console KVM Switch 8-Port Cat5 1URM w/ 19" LCD Screen TAA, 8 Computer(s), 19" LCD, 1366 x 768, 4 x PS/2 Port

SKU
INGMDV7237
$1,515.72 /EACH

Delivered in 2-4 business days

Out of stock
  • TAA compliant for GSA Schedule purchases.
  • Expandable - Cascade a second level of KVM switches to control up to 128 servers from a single station using Tripp Lite's B072-008-1, B072-008-1A, B072-016-1 and/or B072-016-1A to increase the number of ports..
  • Simplifies IT tasks with easy switching between all 8 ports.
  • 19" LCD screen supports video resolutions up to 1366 x 768.
  • Low-cost Cat5 cabling allows longer distances, reduces cable clutter.
  • Occupies just 1U of space in a rack-mountable drawer .

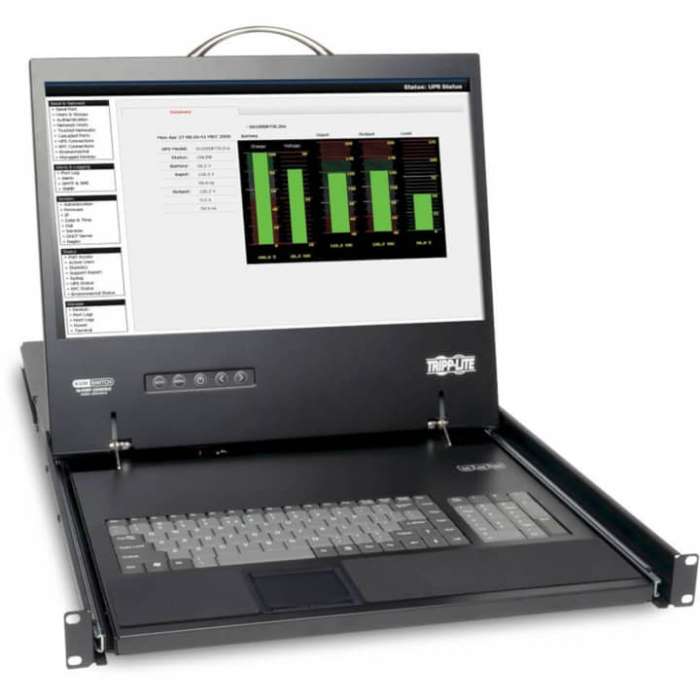

Tripp Lite's B070-008-19 KVM Switch gives you a rack-mountable full keyboard, LCD and touchpad in a single console that occupies only 1U of rack space. Easy to install and use, it's the optimal solution for controlling up to 8 computers/servers. The B070-008-19 uses inexpensive, user-supplied Cat5e/6/6a and a Server Interface Unit so you can control computers/servers located up to 100 ft. away from the switch. You can switch easily between the 8 ports using an on-screen display(OSD) or keyboard hot key commands. Multi-level password protection prohibits unauthorized users from accessing the connected computers. The built-in 19" LCD screen supports video resolutions up to 1366 x 768. Add a Tripp Lite B051-000 IP Remote Access Unit and you'll be able to connect to your servers from anywhere in the world. The B070-008-19 stores neatly in a rack drawer and pulls out when needed. This KVM console is compatible with all major operating systems. Heavy-duty steel housing stands up to frequent use. Complies with the Federal Trade Agreements Act(TAA) for GSA Schedule purchases.


Brand NameTripp Lite
Certifications & StandardsUL 60950-1 (USA), CAN/CSA (Canada), FCC Part 15 Class A, CE, IEC 60950-1
Country of OriginTaiwan
Daisy ChainYes
Depth26.8"
Device TypeLCD Rack Console
Display Screen Type (Display & Graphics)LCD
Display Screen TypeLCD
Environmental CertificationRoHS
Environmentally FriendlyYes
Height1.7"
KVM SwitchNo
Manufacturer Part NumberB070-008-19
ManufacturerTripp Lite by Eaton
Number of Computers Supported8
Number of PS/2 Ports (Interfaces/Ports)4
Number of PS/2 Ports4
Number of VGA Ports (Interfaces/Ports)2
Number of VGA Ports2
Package ContentsNetCommander B070-008-19 Rackmount LCD; Power Cord; Serial Firmware Upgrade Cable; KVM/Console Jumper Cable; Owners Manual CD
Product ColorBlack
Product FamilyNetCommander
Product LineNetCommander
Product ModelB070-008-19
Product NameNetCommander B070-008-19 Rackmount LCD
Product TypeLCD Rack Console
PS/2 Port (Interfaces/Ports)Yes
PS/2 PortYes
Screen Resolution (Display & Graphics)1366 x 768
Screen Resolution1366 x 768
Screen Size (Display & Graphics)19"
Screen Size19"
TAA CompliantYes
VGA (Interfaces/Ports)Yes
VGAYes
Weight (Approximate)36 lb
Width19"
Download PDF File
BrandTripp Lite
Weight (lbs)40.7500
UPC037332154927
MPNB070-008-19
