Tripp Lite Rackmount Cooling Unit Air Conditioner 7K BTU 2.0kW 120V 60Hz, Cooler, 2051.50 W Cooling Capacity, Dehumidifier, Black

SKU
INGMZZ1141
$1,277.62 /EACH

Delivered in 2-4 business days

Out of stock
  • Saves valuable floor space in IT environments
  • Saves energy with efficient close-coupled cooling
  • Provides 7,000 BTU/h (2.0 kW) of cooling capacity
  • Supports optional remote management via Ethernet
  • Includes hardware for easy mounting in 19-inch racks

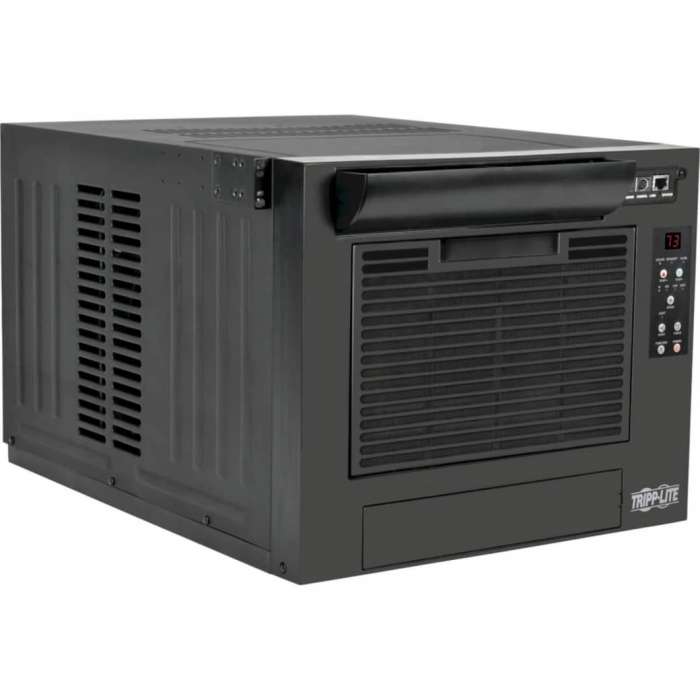

The SRCOOL7KRM Rack-Mounted Server Rack Air Conditioner pumps 7,000 BTU/h (2.0 kW) of close-coupled cooling power into your IT equipment to prevent shutdowns, malfunctions and failures caused by overheating. This space-saving, energy-efficient unit is perfect for data centers, server rooms, network closets and other environments with heat-sensitive rack-mounted equipment and limited floor space. The self-contained SRCOOL7KRM mounts just like any other rack equipment in 8U of space at the bottom of a rack enclosure. A magnetic air dam attaches to the front door of the rack enclosure to ensure that equipment draws cool air from the SRCOOL7KRM instead of drawing warm air from the room. Because it only cools the equipment inside the rack enclosure, the SRCOOL7KRM is much more efficient than solutions that cool an entire room to achieve the same result. The SRCOOL7KRM filters the air, and its built-in evaporator eliminates condensation, as well as the need for a floor drain or water collection tank. The 7-foot cord plugs into a standard 15A (NEMA 5-15R) outlet. The unit restarts automatically after power failures, and you can use the built-in timer to schedule unattended shutdown and startup. The intuitive control panel includes a digital display and diagnostic LEDs to communicate operating conditions at a glance. The optional SRCOOLNET2LX remote management accessory (sold separately) allows you to monitor temperatures, receive alerts, review logs and control settings over the Ethernet network from any location via SNMP, Web, SSH or telnet. The SRCOOLNET2LX accessory also includes an ENVIROSENSE temperature and humidity sensor that allows you to link cooling output with temperature readings up to 12 feet away.


Additional InformationIdeal for enclosures with perforated doors(not for use in enclosures with solid/plexiglass/glass doors); When using a bottom-mounting configuration, the enclosure's floor must be open with no tray or pan below SRCOOL7KRM; Evaporator coils can be vented through enclosure's rear perforated doors or optional SRCOOL7KDUCT(no solid doors); In an open frame application, cooling air delivered to the equipment is lessened, since cold air escapes into the room. Condenser must be ducted using the SRCOOL7KDUCT.
Brand NameTripp Lite
Built-in DisplayYes
Certifications & StandardsEIA; UL484; CSA
Cooling Capacity2051.50 W
Cord Length7 ft
Country of OriginChina
CSA ListedYes
Dehumidification Rate20.8 mL/min
DehumidifierYes
Depth22.5"
Display Screen TypeLCD
Environmental CertificationRoHS
Environmentally FriendlyYes
Height13.9"
Hourly Energy Consumption for Cooling (Energy & Performance)2000 W
Input Current (Cooling)8.50 A
Input Voltage120 V AC
Manufacturer Part NumberSRCOOL7KRM
ManufacturerTripp Lite by Eaton
Maximum Air Flow198.2 CFM
Package ContentsSmartRack 7,000 BTU 120V Rack-Mounted Air Conditioning Unit; Magnetic Air Dam Kit; Directional Output Vent; Mounting Hardware; Owner's Manual
Plug Type5-15P
Product ColorBlack
Product FamilySmartRack
Product FunctionsCooler
Product LineSmartRack
Product ModelSRCOOL7KRM
Product NameSmartRack 7,000 BTU 120V Rack-Mounted Air Conditioning Unit
Product TypeRack Air Conditioner
Refrigerant (Energy & Performance)R-410A
UL ListedYes
Weight (Approximate)61.60 lb
Width17.4"
Download PDF File
BrandTripp Lite
Weight (lbs)87.0000
UPC037332184733
MPNSRCOOL7KRM
