Tripp Lite SmartPro 120V 3kVA 2.25kW Line-Interactive Sine Wave UPS 2U Extended Run Network Card Options LCD USB DB9, 2U, 4.50 Hour Recharge, 3.50 Minute Stand-by, 120 V AC Input
Delivered in 2-4 business days
- Provides complete battery backup and pure sine wave power output for servers, switches and other high-end distributed IT equipment
- Protects equipment against blackouts, brownouts, transient surges and line noise
- Keeps equipment running during outages to allow time for file saves and safe shutdown
- Unity power factor ensures maximum power possible at each power rating
- Optional WEBCARDLXE network interface allows 24/7 remote access and control
- 2-line front-panel LCD with 10 selectable screens reports detailed UPS and site power info
- 2-year warranty, 3 year with registration. Note: Registration is required for 3-year warranty.
- $250,000 Ultimate Lifetime Insurance
Tripp Lite SmartPro Line Interactive UPS with enhanced LCD interface offers network-grade power protection for critical server, network and telecommunications equipment. Line Interactive Uninterruptible Power Supply (UPS) with built-in Auto-Voltage Regulation (AVR) actively corrects brownouts and overvoltages back to usable levels while maintaining a full battery charge in case of power failure. Tripp Lite's unique configuration excels in exceptionally poor-power environments with two separate levels of voltage boost to correct both slight undervoltages and severe brownout conditions. Interactive LCD interface reports UPS operating mode, detailed UPS and site-power data, plus enables a variety of UPS setup and configuration options. Super-fast switchover from line to battery power occurs within milliseconds to maintain operation of connected equipment without interruption or reboot. 98% line-mode efficiency offers reduced heat emissions and operating costs. Network management interfaces support communications via USB, RS-232 and installed Network Management Card option. HID-compliant USB port enables integration with built-in power management and auto shutdown features of Windows and Mac OS X. Network communications ports enable detailed monitoring of equipment load levels, self-test data and utility power conditions. PowerAlert UPS monitoring software is available via free download. Switched output load banks enable scheduled and real-time remote reboot and load shedding of select outlets. Emergency Power Off (EPO) interface. LCD display panel easily rotates for viewing in rackmount or tower configurations. Audible alarm with push-button momentary alarm-cancel and silent-mode configuration options. Programmable self-test. Field-replaceable, hot-swappable battery modules.
| Alarm | Low Battery |
|---|---|
| Alarm | On Battery |
| Alarm | Overload |
| Backup/Run Time (Full Load) | 3.50 Minute |
| Backup/Run Time (Half Load) | 10 Minute |
| Brand Name | Tripp Lite |
| Certifications & Standards | UL1778 (USA); CSA (Canada); NOM (Mexico); FCC Part 15 Category A (EMI) |
| Cord Length | 10 ft |
| Country of Origin | Taiwan |
| Depth | 19" |
| Emergency Power OFF | Yes |
| Environmental Certification | RoHS |
| Environmentally Friendly | Yes |
| Height | 3.5" |
| Hot Swappable | Yes |
| Input Current | 24 A |
| Input Voltage | 120 V AC |
| Load Capacity (VA) | 3000 VA |
| Load Capacity (W) | 2250 W |
| Manufacturer Part Number | SMART3000RM2U |
| Manufacturer | Tripp Lite by Eaton |
| Maximum Operating Temperature | 104F (40C) |
| Network Management | SNMP Manageable |
| Output Voltage | 120 V AC |

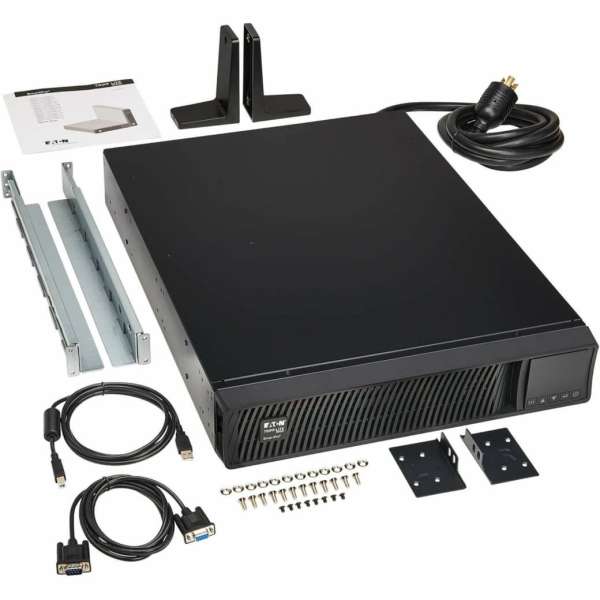

| Package Contents | SMART3000RM2U UPS System; Poweralert Software With Usb, Serial & Epo Cabling; 4 x Post Rackmount Installation Kit; Instruction Manual |
| Packaged Quantity | 1 Each |
| Plug/Connector Type | NEMA L5-30P |
| Product Family | SmartPro |
| Product Line | SmartPro |
| Product Name | SMART3000RM2U UPS System |
| Product Type | Line-interactive UPS |
| Protection Type | Over Voltage |
| Protection Type | Under Voltage |
| Rack Height | 2U |
| Receptacle Detail | 1 x NEMA L5-30R |
| Receptacle Detail | 8 x NEMA 5-15/20R |
| Receptacle Type | NEMA 5-15/20R |
| Receptacle Type | NEMA L5-30R |
| Recycled | No |
| Software Included | PowerAlert Software |
| Status Indicators (Controls/Indicators) | 5 Front Panel Leds:; Green Power Led; Green Voltage Correction Led; 3 Color Battery Charge Led; 3 Color Output Load Led; Red Battery Warning Led |
| Transfer Time | 4 ms |
| Typical Battery Recharge Time | 4.50 Hour |
| USB (Interfaces/Ports) | Yes |
| Waveform Type | Sine Wave |
| Weight (Approximate) | 64 lb |
| Width | 17.5" |
| UPC | 037332096685 |
|---|---|
| Weight (lbs) | 74.7000 |
| MPN | SMART3000RM2U |
| Brand | Tripp Lite |
