Line interactive UPS system offers voltage regulation, surge suppression and long-lasting battery support for personal computers, networking equipment and other sensitive electronics. Internal UPS circuits support entry level PC systems for up to 30 minutes during power failures so that connected equipment can be shutdown without data loss. A USB port (cable included) provides power management and unattended shutdown when used with PowerAlert Software (website download). Automatic voltage regulation corrects brownouts as low as 83V. Includes six outlets (three UPS/three surge-only). Built-in, single-line RJ11 phone suppression jacks protect modem, fax machine, cordless phone or other peripheral with a standard dialup/DSL phone connection. Offers 4 minute battery runtime with a full load of 550VA/300 watts and 15 minutes with a half load of 275VA/150 watts.

Product Type	Line-interactive UPS
Plug/Connector Type	NEMA 5-15P
Receptacle Type	NEMA 5-15R
Receptacle Detail	3 x NEMA 5-15R
Dataline Protection	RJ-11
Protection Type	Surge
Cord Length	6 ft
Transfer Time	4 ms
Load Capacity	550 VA/300 W
Input Voltage	120 V AC
Output Voltage	120 V AC
Waveform Type	Pulse-width Modulated Sine Wave
Surge Energy Rating	480 J
Alarm	On Battery

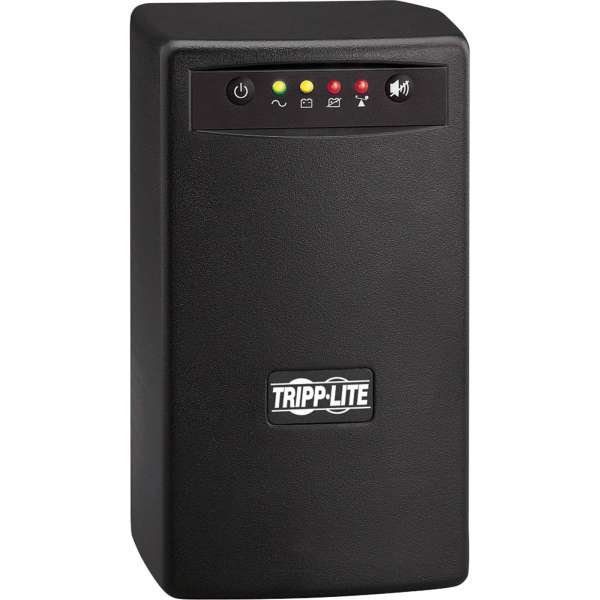

Status Indicators	4 LEDs indicate performance conditions	GREEN "online" / GREEN "voltage regulation enabled" / RED "on battery" / YELLOW "battery low/replace"
USB	Yes
Battery Chemistry	Lead Acid
Backup/Run Time (Full Load)	4 Minute
Backup/Run Time (Half Load)	15 Minute
Battery Life	6 Year
Typical Battery Recharge Time	4 Hour
Maximum Operating Temperature	122°F (50°C)
Product Color	Black
Height	8.5"
Width	5"
Depth	6.5"
Form Factor	Tower
Weight (Approximate)	14.40 lb
Package Contents	SMART550USB UPS System USB and Telephone interconnection cables Instruction manual with warranty information
Additional Information	SMART550USB line interactive UPS system offers voltage regulation and battery support, plus complete AC and dialup/DSL modem line surge suppression Supports entry level PC systems for up to 30 minutes during power failures to enable a safe system shutdown Supports a max load of 550VA/300 watts for 5 minutes and a half load of 275VA/150 watts for 17 minutes Automatic Voltage Regulation (AVR) circuits correct brownouts as low as 83 volts without using battery power Attractive stealth black tower configuration Includes 3 battery supported outlets, plus 3 additional surge suppression-only outlets, 6 foot AC line cord (all NEMA 5-15) USB port enables unattended shutdown without data loss during extended power failures, includes USB cable PowerAlert software available via free download from www.tripplite.com Built-in RJ11 phone suppression jacks protect modem, fax machine or other peripheral with a dialup or DSL line phone connection Built-in audible alarm and 4 front panel LEDs indicate UPS system and line power status 550VA / 300 watt power handling ability supports a variety of computer, internetworking, telecom and consumer electronics equipment Supports battery replacement via built-in access panel Compatible with 120V / 60Hz applications for USA, Canada, Mexico and more 2 year manufacturers warranty 200,000 Connected Equipment Insurance (USA & Canada Only)
Certifications & Standards	UL1778 (USA), cUL (Canada), FCC Class B (emissions), NOM (Mexico), FCC Part 68 / Industry Canada (Telecommunications), Conforms to IEEE 587 / ANSI C62.41 specifications
Software Included	PowerAlert Software
Recycled	No
Assembly Required	No
Country of Origin	China
Limited Warranty	3 Year
Additional Warranty Information	2 year warranty. 200,000 connected equipment insurance (USA & Canada Only).
Download PDF File	Manufacturer Brochure

Brand	Tripp Lite
Weight (lbs)	13.8000
UPC	037332042163
MPN	SMART550USB
