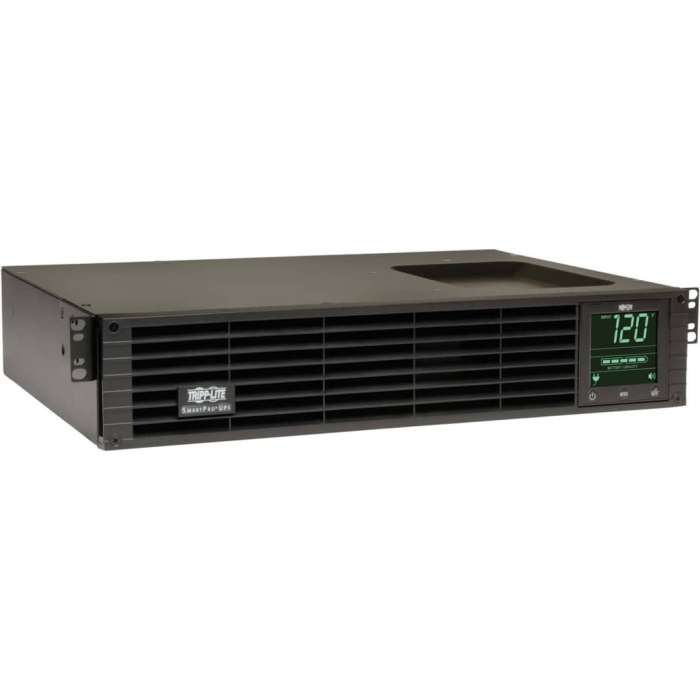

Tripp Lite UPS Smart 1500VA 1350W Rackmount AVR 120V Pure Sine Wave USB DB9 2URM TAA GSA, 1500VA/1350W, 4.9 Minute Full Load, 8 x NEMA 5-15R
Delivered in 2-4 business days
- 14 min. runtime at half load; 4.9 min. at full load.
- Expandable runtime with optional external battery packs.
- Network power management and control capability.
- 8 NEMA 5-15R outlets-4 switchable via network interface.
- Corrects under- and overvoltages from 83V to 145V .
Protects Mission-Critical Rack-Mounted Equipment; Provides fully regulated sine wave AC output for servers, network storage devices and telecom hardware; Audible alarm signals loss of utility power, overload, low battery and more; 8 NEMA 5-15R outlets; 10-ft. (3.05 m) power cord with 120V NEMA 5-15P input; 570-joule surge suppression rating. Reliable Battery Backup with Expandable Runtime; Supports half load up to 14 min. and full load up to 4.9 min.; Internal batteries designed for hot-swap field replacement; Expandable runtime with optional external battery packs, such as Tripp Lite's BP36V15-2U; 95% line-power efficiency rating saves money in energy costs. Switchable Outlets; 2 load banks, each with 2 outlets controllable remotely to reboot equipment or shed nonessential loads. Automatic Voltage Regulation (AVR); Maintains 120V nominal output over input range of 83V-145V without using battery power. EMI/RFI Line Noise Filtering; Removes electromagnetic and radio frequency interference that can disrupt or damage equipment's performance. Interactive LCD Screen; Front-panel LCD monitors power status, operating data, voltage, alarm and other options; Rotates for easy viewing in rack-mount or tower configurations. Optional Network Management Cards; Compatible with Tripp Lite UPS management cards, including TLNETCARD, WEBCARDLX and SNMPWEBCARD. Communications Ports; USB and DB9 ports enables data-saving unattended shutdown when used with Tripp Lite's PowerAlert software, available via FREE download from tripplite.eaton.com/products/power-alert; EPO port supports emergency shutdown in large facilities. Versatile Installation Options; Hardware included for 4-post mounting in 2U of EIA-standard 19 in. rack; Mounts on wall or 2-post rack with optional 2POSTRMKITWM accessory; Mounts in upright tower position with optional 2-9USTAND accessory; Mounts to front rails of 2- or 4-post rack with optional UPSHDEARKIT accessory. TAA Compliant; Complies with Federal Trade Agreements Act (TAA) for GSA Schedule purchases
| Backup/Run Time (Full Load) | 4.90 Minute |
|---|---|
| Backup/Run Time (Half Load) | 14 Minute |
| Brand Name | Tripp Lite |
| Certifications & Standards | UL 1778; CSA; FCC Part 15 Category B (EMI); TAA |
| Country of Origin | Taiwan |
| Depth | 13.5" |
| Emergency Power OFF | Yes |
| Environmental Certification | RoHS |
| Environmentally Friendly | Yes |
| Form Factor | Rack/Tower |
| Height | 3.5" |
| Hot Swappable | Yes |
| Input Current | 10.10 A |
| Input Voltage | 110 V AC |
| Load Capacity (VA) | 1500 VA |
| Load Capacity (W) | 1350 W |
| Manufacturer Part Number | SM1500RMXL2UTAA |
| Manufacturer | Tripp Lite by Eaton |
| Network Management | SNMP Manageable |
| Output Voltage | 120 V AC |
| Package Contents | SmartPro SM1500RMXL2UTAA 1500 VA Tower/Rack Mountable UPS; PowerAlert Software; USB Cable; Serial Cable; Mounting Hardware for 4 Post Rackmount Installation; Cable for Emergency Power Off Interface; Instructional Manual with Warranty Information |
| Plug/Connector Type | NEMA 5-15P |
| Product Family | SmartPro |
| Product Line | SmartPro |
| Product Model | SM1500RMXL2UTAA |
| Product Name | SM1500RMXL2UTAA 1500 VA Tower/Rack Line Interactive UPS TAA Compliant |
| Product Type | Line-interactive UPS |
| Rack Height | 2U |
| Receptacle Detail | 8 x NEMA 5-15R |
| Receptacle Type | NEMA 5-15R |
| Serial Port (Interfaces/Ports) | Yes |
| Software Included | PowerAlert Software |
| TAA Compliant | Yes |
| Typical Battery Recharge Time | 4.50 Hour |
| USB (Interfaces/Ports) | Yes |
| Weight (Approximate) | 43.50 lb |
| Width | 17.5" |
| Download PDF File |
| UPC | 037332152831 |
|---|---|
| Weight (lbs) | 60.0000 |
| MPN | SM1500RMXL2UTAA |
| Brand | Tripp Lite |
