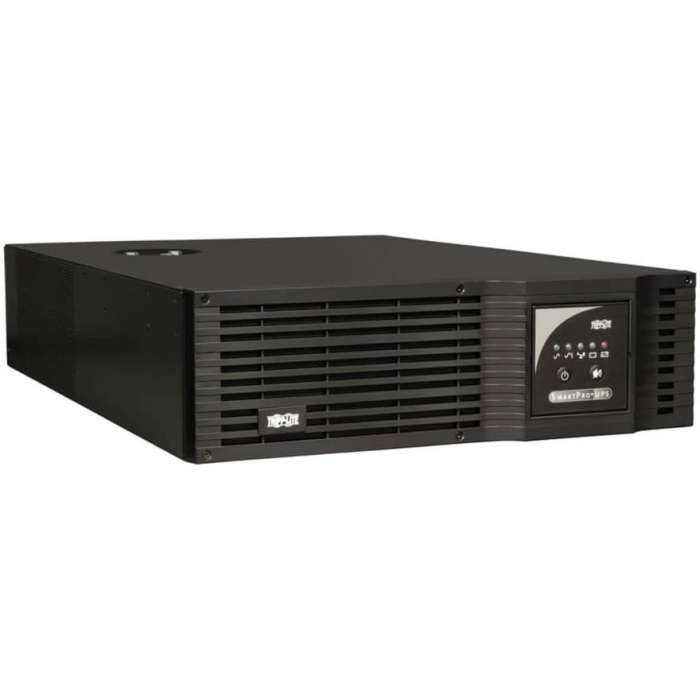

Tripp Lite UPS Smart 5000VA 3750W Rackmount AVR 120V/208V Pure Sign Wave 5kVA USB DB9 3URM, 5000VA/3750W, 8.5 Minute Full Load, 1 x NEMA L6-30R, 2 x NEMA L6-20R, 8 x NEMA 5-15/20R
Delivered in 2-4 business days
Tripp Lite 5kVA Smart RM UPS. 5000VA line-interactive UPS for server, network and telecommunications equipment. UPS with internal batteries requires 3 rack spaces installed. Accepts 208V nominal input voltage. Simultaneous 208 & 120V output. Corrects brownouts and overvoltages from 167V to 260V. Sine wave output. Maintains battery-derived AC output during blackouts and severe voltage fluctuations. Expandable runtime with optional external battery packs. 11 output receptacles. NEMA L6-30P input connection with support for user-supplied 50A or hardwire input. Network-grade AC surge and noise suppression. Network management interfaces include USB, DB9 serial and SNMPWEBCARD slot. Supports simultaneous detailed monitoring of equipment load levels, self-test data and utility power conditions via all network interfaces simultaneously. Includes PowerAlert monitoring software and complete cabling. Emergency Power Off (EPO) interface. Integrated 8-bank switched PDU. 3-stage metered current monitoring and battery charge LEDs. Utility power and voltage regulation LEDs. Audible alarm. Self-test. 4-post rack mounting accessories included; 2-9USTAND and 2POSTRMKITWM accessories available. Field-replaceable, hot-swappable internal batteries and battery packs.
| Additional Information | Line Mode: Sine wave line voltage 208V & 120V (+/-10%); Battery Mode: 208V & 120V (+/-5%) |
|---|---|
| Backup/Run Time (Full Load) | 8.50 Minute |
| Backup/Run Time (Half Load) | 20 Minute |
| Battery Characteristics | Maintenance-free |
| Battery Chemistry | Lead Acid |
| Battery Mode | 208V & 120V (+/-5%) |
| Brand Name | Tripp Lite |
| Certifications & Standards | Tested to UL1778 (USA); CSA C22.2 No. 107.3 (Canada); NOM (Mexico); Class A (emissions) |
| Country of Origin | China |
| Depth | 25" |
| Emergency Power OFF | Yes |
| Form Factor | Tower |
| Height | 5.3" |
| Hot Swappable | Yes |
| Input Current | 27 A |
| Input Voltage | 208 V AC |
| Line Mode | Sine wave line voltage 208V & 120V (+/-10%) |
| Load Capacity (VA) | 5000 VA |
| Load Capacity (W) | 3750 W |
| Manufacturer Part Number | SMART5000XFMRXL |
| Manufacturer | Tripp Lite by Eaton |
| Modem (RJ-11) (Interfaces/Ports) | Yes |
| Network Management | SNMP Manageable |
| Output Voltage | 208 V AC |

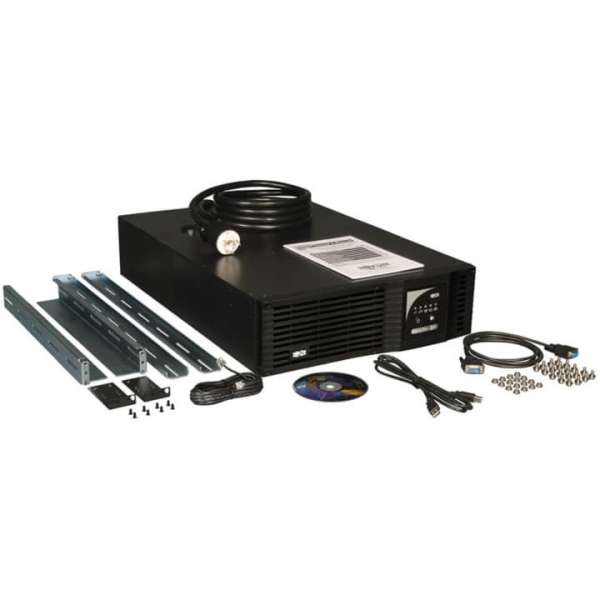

| Package Contents | SmartPro Series SMART5000XFMRXL 5000VA Tower/Rack Mountable UPS; SMART 5000XFMRXL UPS System; PowerAlert Software and Cabling; Mounting hardware for 4-post rackmount installation; Warranty information; Instruction manual |
| Plug/Connector Type | NEMA L6-30P |
| Product Family | SmartPro |
| Product Line | SmartPro |
| Product Model | SMART5000XFMRXL |
| Product Name | SmartPro Series SMART5000XFMRXL 5000VA Tower/Rack Mountable UPS |
| Product Type | Line-interactive UPS |
| Rack Height | 3U |
| Receptacle Detail | 1 x NEMA L6-30R |
| Receptacle Detail | 2 x NEMA L6-20R |
| Receptacle Detail | 8 x NEMA 5-15/20R |
| Receptacle Type | NEMA 5-15/20R |
| Receptacle Type | NEMA L6-20R |
| Receptacle Type | NEMA L6-30R |
| Serial Port (Interfaces/Ports) | Yes |
| Software Included | PowerAlert UPS Monitoring Software |
| TAA Compliant | Yes |
| Total Number of Expansion Slots (Interfaces/Ports) | 1 |
| Transfer Time | 4 ms |
| Typical Battery Recharge Time | 4 Hour |
| USB (Interfaces/Ports) | Yes |
| Weight (Approximate) | 143.30 lb |
| Width | 17.5" |
| Download PDF File |
| Brand | Tripp Lite |
|---|---|
| Weight (lbs) | 182.2000 |
| UPC | 037332121462 |
| MPN | SMART5000XFMRXL |
