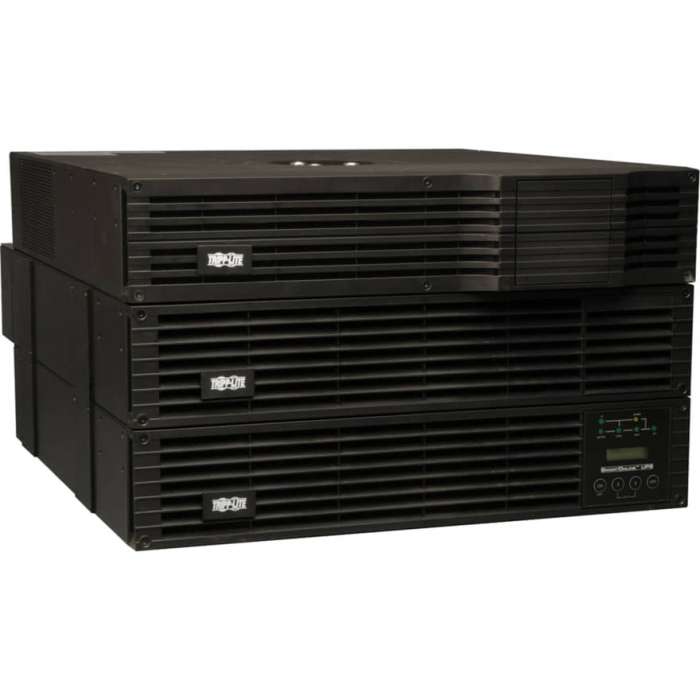

Tripp Lite UPS Smart Online 5000VA 4500W Rackmount 5kVA 208V/120V USB DB9 6URM, 6U Rack/Tower, 6 Hour Recharge, 3.50 Minute Stand-by, 208 V AC Input
Delivered in 2-4 business days
- 5kVA / 5000VA / 4500 watt on-line double-conversion UPS; 0.9 power factor
- 208/120V 60Hz output; high efficiency economy mode option
- 6U Rack/Tower compatible; Hot swappable battery modules
- USB, RS232 & EPO ports; support for SNMP/WEB and contact-closure card options
Tripp Lite SU5000RT4UTF 5000VA / 5kVA / 4500 watt on-line, double-conversion UPS system offers complete power protection for critical server, network and telecommunications equipment in a 6U rack/tower configuration. Maintains full-time sine wave output within 2% of 208 and 120V nominal at 60Hz during brownouts as low 100V and overvoltages as high as 300V. Double-conversion operation converts raw input from AC to DC, then resynthesizes output power back to perfect sine wave AC with enhanced protection from harmonic distortion, fast electrical impulses and other hard-to-solve power problems not addressed by other UPS types. HID-compliant USB interface enables integration with built-in power management and auto shutdown features of Windows and Mac OS X. Front panel LEDs and LCD readout with scroll controls support front-panel visual monitoring of all major UPS functions. L6-30P input, plus 2 L6-30R, 2 L6-20R and 12 5-15/20R outlets.
| Backup/Run Time (Full Load) | 3.50 Minute |
|---|---|
| Backup/Run Time (Half Load) | 11 Minute |
| Brand Name | Tripp Lite |
| Bypass Switch | Automatic |
| Country of Origin | China |
| Depth | 21" |
| Emergency Power OFF | Yes |
| Environmental Certification | RoHS |
| Environmentally Friendly | Yes |
| Form Factor | Rack/Tower |
| Height | 6.9" |
| Input Current | 24 A |
| Input Frequency | 60 Hz |
| Input Voltage | 208 V AC |
| Load Capacity (VA) | 5000 VA |
| Manufacturer Part Number | SU5000RT4UTF |
| Manufacturer | Tripp Lite by Eaton |
| Network Management | SNMP Manageable |
| Output Frequency | 60 Hz |
| Output Voltage | 120 V AC |
| Output Voltage | 208 V AC |
| Package Contents | SmartOnline E SU5000RT4UTF 5kVA Tower/Rack-Mountable UPS; PowerAlert Software CD-ROM; USB Cable; Serial Cable; EPO Cable; 2 x Sets of Adjustable 4 Post Rack Rails |
| Plug/Connector Type | NEMA L6-30P |
| Product Family | SmartOnline E |
| Product Line | SmartOnline |
| Product Model | SU5000RT4UTF |
| Product Name | SmartOnline E SU5000RT4UTF 5kVA Tower/Rack-Mountable UPS |
| Product Series | E |
| Product Type | Double Conversion Online UPS |
| Rack Height | 6U |
| Receptacle Detail | 12 x NEMA 5-15/20R |
| Receptacle Detail | 2 x NEMA L6-20R |
| Receptacle Detail | 2 x NEMA L6-30R |
| Receptacle Type | NEMA 5-15/20R |
| Receptacle Type | NEMA L6-20R |
| Receptacle Type | NEMA L6-30R |
| Serial Port (Interfaces/Ports) | Yes |
| Software Included | PowerAlert Software |
| Typical Battery Recharge Time | 6 Hour |
| USB (Interfaces/Ports) | Yes |
| Weight (Approximate) | 113.60 lb |
| Width | 17.5" |
| Download PDF File |
| Brand | Tripp Lite |
|---|---|
| Weight (lbs) | 175.0000 |
| UPC | 0037332157140 |
| MPN | SU5000RT4UTF |
