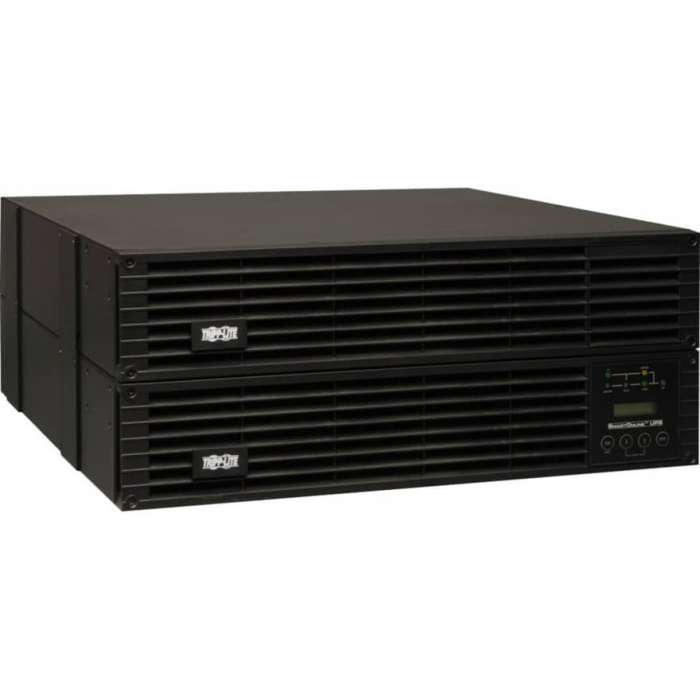

Tripp Lite UPS Smart Online 6000VA 5400W Rackmount 6kVA 200-240V USB DB9 Manual Bypass Hot Swap 4URM, 4U Rack/Tower, 6 Hour Recharge, 2 Minute Stand-by, 230 V AC Input

SKU
INGMDC7619
$5,132.08 /EACH

Delivered in 2-4 business days

Out of stock
  • Completely user hot-swappable-no service call or technician needed
  • Included maintenance bypass switch enables live replacement of UPS with zero downtime
  • Protects rackmount servers, telecom systems and other networking equipment in high-voltage environments with true on-line operation, pure sine wave output and zero transfer time
  • 4 AC outlets (2 L6-20R; 2 L6-30R) with 200/208/220/230/240V 50/60Hz output
  • 6kVA/5400W capacity in 4U form factor with power module and independent, detachable PDU
  • Hot-swappable power and battery modules
  • 8.5-minute half-load runtime, 2-minute full-load; expandable runtime with external battery packs
  • Front panel LEDs with detailed LCD monitoring and control screen

Featuring true on-line operation with pure sine wave output, zero transfer time to battery and complete UPS replacement capability with no downtime, the SU6000RT4UHV provides the highest level of protection available for mission-critical equipment from power outages, voltage fluctuations and transient surges. It converts incoming AC power to DC, and re-converts it back to filtered AC output with a pure sine wave, isolating connected components from all power problems in high-voltage environments. The SU6000RT4UHV has a 6kVA/5400W capacity and 4 AC outlets (2 L6-20R; 2 L6-30R).With its detachable PDU, the SU6000RT4UHV is easily hot-swappable by a user of any skill set-no need for lengthy and expensive service calls, and no downtime if a repair or battery replacement is needed. In bypass mode, the PDU passes power to equipment without the use of the power and battery modules, allowing them to be removed while keeping your application in operation. UPS battery backup keeps connected equipment operational through short power failures, and provides time to save data and perform an orderly system shutdown in case of a prolonged blackout. The SU6000RT4UHV's runtime can be expanded with optional external battery packs.The SU6000RT4UHV features a highly efficient (96%) economy mode setting that can significantly reduce a facility's energy costs by minimizing heat output, reducing cooling requirements and consuming less electricity.An LCD display with LED indicators enables IT personnel to monitor operating modes and conditions. The LCD/LED panel rotates for viewing in horizontal rack or vertical tower installations and includes an audible alarm that signals various conditions.The SU6000RT4UHV features a USB port and a DB9 port that, when used with Tripp Lite's PowerAlert software, provides comprehensive network power monitoring and control. An optional network management card accessory, enables the UPS to operate as an IP managed device.The unit requires only 4U of rack space in a standard rack enclosure and can be installed in a 2-post rack using the 2POSTRMKITHD accessory, or in a tower configuration with the 2-9USTAND accessory.The SU6000RT4UHV comes with $250,000 Ultimate Lifetime Insurance (U.S., Canada, and Puerto Rico only) for connected equipment.


Backup/Run Time (Full Load)2 Minute
Backup/Run Time (Half Load)8.50 Minute
Brand NameTripp Lite
Bypass SwitchAutomatic
Bypass SwitchManual
Certifications & StandardsUL1778; CSA; FCC Part 15 Category A (EMI); IEC 61000-4-5 1995 B Surge Immunity
Country of OriginChina
DC System Voltage192 V DC
Depth20.7"
Emergency Power OFFYes
EMI/RFI Noise FilterYes
Energy SavingHigh efficiency economy mode operation; Support for daily startup and shutoff; Schedulable daily hours of economy mode operation
Environmental CertificationRoHS
Environmentally FriendlyYes
EPO Port (Interfaces/Ports)Yes
Form FactorRack/Tower
Height6.9"
Hot SwappableYes
Input Current31.90 A
Input Frequency50 Hz
Input Voltage230 V AC
Load Capacity (VA)6000 VA
Load Capacity (W)5400 W
Manufacturer Part NumberSU6000RT4UHV
ManufacturerTripp Lite by Eaton
Maximum Operating Elevation9842.52 ft
Maximum Operating Temperature104°F (40°C)
Network ManagementSNMP Manageable
Output Frequency50 Hz
Output Voltage200 V AC
Output Voltage208 V AC
Output Voltage240 V AC
Package ContentsSmartOnline EZ SU6000RT4UHV 6000 VA Tower/Rack Mountable UPS; PowerAlert Software Suite CD; USB Cable; Serial Cable; EPO Cable; Rail Kit
PhaseSingle Phase
Plug/Connector TypeNEMA L6-30P
Product FamilySmartOnline EZ
Product LineSmartOnline
Product ModelSU6000RT4UHV
Product NameSmartOnline EZ SU6000RT4UHV 6000 VA Tower/Rack Mountable UPS
Product SeriesEZ
Product TypeDouble Conversion Online UPS
Rack Height4U
Receptacle Detail2 x NEMA L6-20R
Receptacle Detail2 x NEMA L6-30R
Receptacle TypeNEMA L6-20R
Receptacle TypeNEMA L6-30R
Replaceable BatteryYes
Serial Port (Interfaces/Ports)Yes
Software IncludedPowerAlert Software Suite
Sound Emission (A-Weighted)60 dB(A)
Status Indicators (Controls/Indicators)LEDs:; Line power; Online mode; Economy/bypass mode; On-battery; Charger; AC output
Surge Energy Rating2595 J
Transfer Time0 ns
Typical Battery Recharge Time6 Hour
USB (HID Compliant) Port (Interfaces/Ports)Yes
USB (Interfaces/Ports)Yes
Waveform TypePure Sine Wave
Weight (Approximate)108 lb
Width17.5"
Download PDF File
BrandTripp Lite
Weight (lbs)210.0000
UPC037332157096
MPNSU6000RT4UHV
