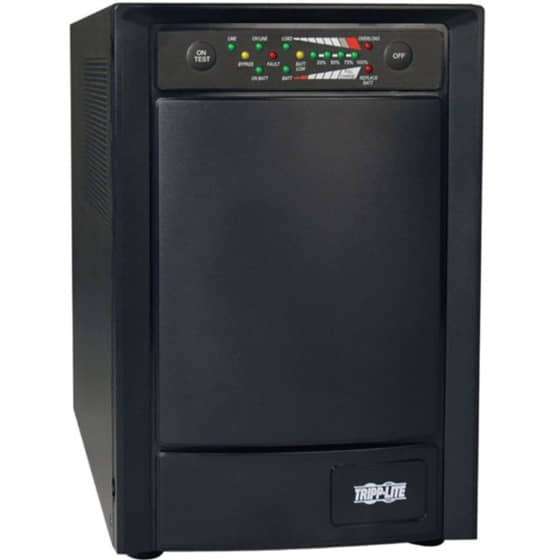

Tripp Lite UPS Smart Online 750VA 600W Tower 100V/110V/120V USB DB9 SNMP RT, 750VA/600W, 4 Minute Full Load, 6 x NEMA 5-15R
Delivered in 2-4 business days

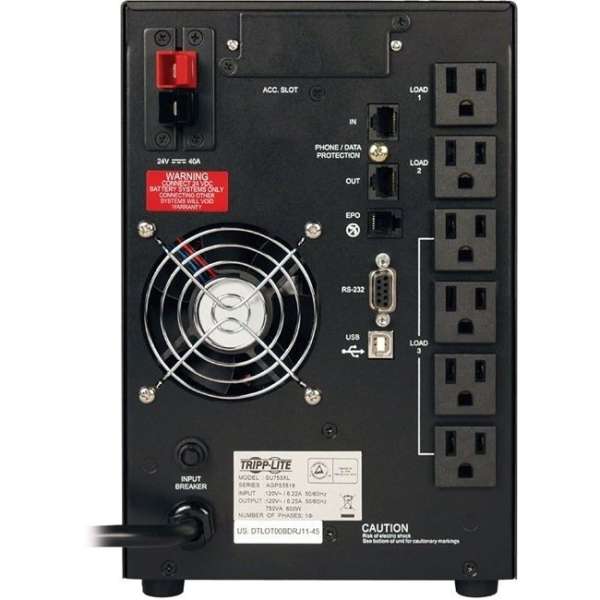

The SU750XL on-line, double-conversion UPS protects critical server, networking or telecommunications equipment from blackouts, brownouts, voltage fluctuations and surges. Large-capacity 750VA/600W UPS continuously converts incoming AC to DC, then back to perfect sine wave AC output at 120V AC (+/-2%). Includes 6 UPS supported outlets; 2 single-outlet load banks can be independently controlled via a software interface to selectively reboot remote equipment or shed less critical loads. Includes slot for internal SNMP/WEB card, plus DB9 enhanced serial monitoring port for unattended shutdown, remote control and monitoring of UPS system and power data. Includes USB and DB9 serial ports. Built-in DB9 port offers both enhanced RS-232 enabled monitoring data, plus contact closure monitoring ability. HID-compliant USB interface enables integration with built-in power management and auto shutdown features of Windows and Mac OS X. Includes Tripp Lite's PowerAlert UPS power management software.
| Additional Information | Switches: Includes combination main power on/test and main power off switch |
|---|---|
| Backup/Run Time (Full Load) | 4 Minute |
| Backup/Run Time (Half Load) | 11 Minute |
| Brand Name | Tripp Lite |
| Bypass Switch | Automatic |
| Certifications & Standards | Tested to UL1778 (USA), CSA C22.2 No. 107.3 (Canada), Class B (Emissions), RoHS-compliant, FCC Part 68/ Industry Canada (telecommunications) |
| Country of Origin | China |
| Dataline Protection | RJ-45 |
| Depth | 13.3" |
| Emergency Power OFF | Yes |
| Form Factor | Tower |
| Height | 10" |
| Hot Swappable | Yes |
| Input Current | 6.20 A |
| Input Voltage | 110 V AC |
| Load Capacity (VA) | 750 VA |
| Load Capacity (W) | 600 W |
| Manufacturer Part Number | SU750XL |
| Manufacturer | Tripp Lite by Eaton |
| Network Management | SNMP Manageable |
| Output Voltage | 120 V AC |
| Package Contents | SmartOnline SU750XL Tower UPS; SU750XL UPS System; PowerAlert Software CD and cabling; EPO (Emergency Power Off) cabling; Owner's manual with warranty information |
| Plug/Connector Type | NEMA 5-15P |
| Product Family | SmartOnline |
| Product Line | SmartOnline |
| Product Model | SU750XL |
| Product Name | SmartOnline SU750XL Tower UPS |
| Product Type | Double Conversion Online UPS |
| Receptacle Detail | 6 x NEMA 5-15R |
| Receptacle Type | NEMA 5-15R |
| Serial Port (Interfaces/Ports) | Yes |
| Software Included | PowerAlert Software |
| Switches | Includes combination main power on/test and main power off switch |
| Typical Battery Recharge Time | 6 Hour |
| USB (Interfaces/Ports) | Yes |
| Weight (Approximate) | 28.70 lb |
| Width | 6.8" |
| Download PDF File |
| Brand | Tripp Lite |
|---|---|
| Weight (lbs) | 32.0000 |
| UPC | 037332126160 |
| MPN | SU750XL |
