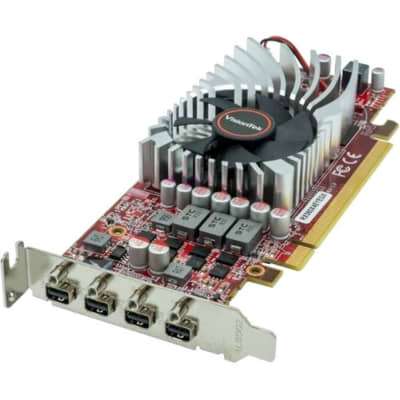

VisionTek AMD Radeon RX 560 Graphic Card, 4 GB GDDR5, Low-profile, 1.18 GHz Core, 128 bit Bus Width

SKU
INGM6UU091
$242.65 /EACH
Out of stock

Versatile. Whether you want to power a convenience store display, a multi-monitor display wall in a public venue, feed four individual monitors to separate rooms in your business office environment, the RX560 4M is ready to present your desired message or content from a single PC. No Additional Power Supply Needed. Thanks to an energy efficient design, the RX560 4M requires only 75 watts of power so it can be run off the system power bus. With most systems featuring a factory-installed 350 watt or higher power supply, you don't have to purchase and install a larger power supply. High Speed Memory for High Performance. While consumer grade cards use common DDR3 memory, the RX560 4M uses 4GB of higher bandwidth GDDR5 memory to deliver lag-free content with the highest resolution possible. Secure Cable Connections. The RX560 4M features a unique bracket that utilizes the included mini DP to DVI screw attaching cables and mini DP to DP adapters to prevent accidental cable disconnection. Small Form Factor - Low Profile Design. Short/Small Form Factor (SFF) design fits in today's Low-Profile desktops and workstations via the short bracket mounted on card. The card is convertible to standard ATX design with the included tall bracket for standard chassis as well. Four Independent Surround Sound Audio Channels. By incorporating Discrete Digital Multi-Point Audio technology into its chipset, the RX560 4M is able to deliver HD 7.1 surround sound independently to four displays via the four interfaces on the card. Gone is the need for multiple PCs and cards to provide audio to multiple displays. And, you don't need a 3.5mm mini-DIN cable to connect to the motherboard. This attention to detail to support business application use via the mini DisplayPort interface is unmatched by any other graphics card manufacturer. Key Features; AMD Eyefinity technology multi-display support for up to four displays; AMD Stream technology; Designed for DirectCompute 11 and OpenCL; Accelerated Video Transcoding (AVT); Compliant with DirectX 12 and earlier revisions; Supports DirectX 12 and OpenGL; AMD Avivo HD video and display technology; Advanced dynamic power management with AMD PowerPlay technology


API SupportedDirectCompute 11
API SupportedDirectX 12
API SupportedOpenCL
API SupportedOpenGL
Brand NameVisionTek
Bus Width128 bit
Card HeightLow-profile
Chipset LineRadeon
Chipset ManufacturerAMD
Chipset ModelRX 560
Chipset SeriesRX 500
Cooler TypeFan Cooler
Country of OriginTaiwan
Environmental CertificationRoHS
Environmentally FriendlyYes
Form FactorPlug-in Card
GPU Clock1.18 GHz
Host Interface (Interfaces/Ports)PCI Express 3.0 x16
Host InterfacePCI Express 3.0 x16
Manufacturer Part Number901278
ManufacturerVisionTek Products, LLC
Memory TechnologyGDDR5
Mini DisplayPort (Interfaces/Ports)Yes
Multi-GPU TechnologyCrossFireX
Number of Mini DisplayPort Outputs (Interfaces/Ports)4
Number of Monitors Supported4
Package ContentsRadeon RX 560 Graphic Card; 2 x mDP to DP Adapters; 2 x mDP to DVI Adapters; Installation Guide; Tall/Full Height Bracket
Platform SupportedLinux
Platform SupportedPC
Product NameRadeon RX 560 Graphic Card
Product TypeGraphic Card
Standard Memory4 GB
BrandVisionTek
Weight (lbs)1.100000
UPC784090039255
MPN901278
Prop65 WarningWARNING: This product can expose you to chemicals, which are known to the State of California to cause cancer, birth defects, or other reproductive harm.
