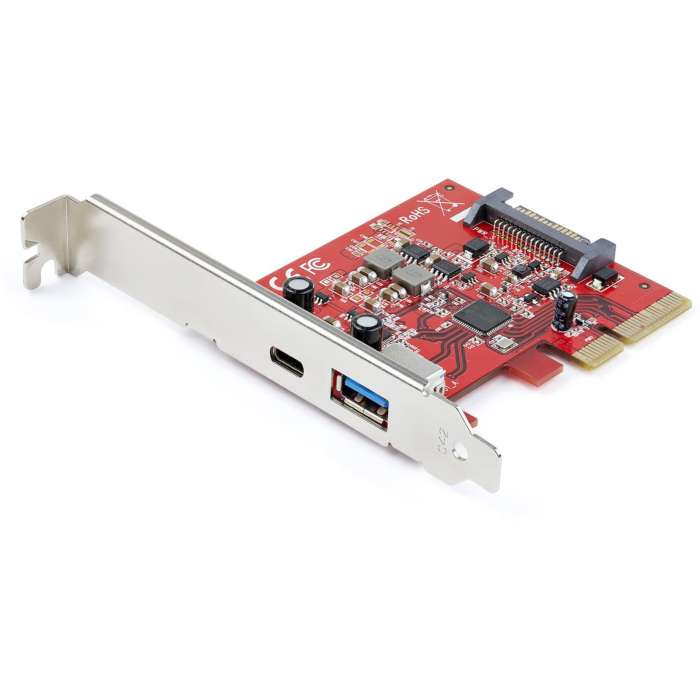

StarTech.com 2-Port 10Gbps USB-A & USB-C PCIe Card Adapter

SKU
STCPEXUSB311AC3
$65.21 /EACH

Delivered in 2-4 business days

In stock
  • HIGH PERFORMANCE: USB 3.1 Gen 2 or USB 3.2 Gen 2x1 PCIe Add-On card supports Multiple INs, maintains max bandwidth even when mixed speed devices are connected; 10Gbps per port; 1x USB-A & 1x USB-C | Upgraded version of our popular card PEXUSB311AC2
  • POWER: Expansion card w/ SATA power supplies supplemental power to the USB ports (when motherboard power is insufficient) providing up to 5V 3A/15W via the USB-C port & 5V 0.9A/4.5W via the USB-A port
  • MAX PERFORMANCE WITH USB DEVICES: 2-port USB-A & USB-C PCIe card adapter supports USB Attached SCSI Protocol (UASP) optimizing USB performance w/ external storage devices like SSDs, HDDs, NVMe drives
  • COMPATIBILITY: Installs in full or low-profile PCIe 3.0 x4 desktop/server slot (lower performance w/PCI-e 2.0); Windows/Linux/macOS auto driver install (Windows 8 & up); Works with USB 3.2/3.1/3.0/2.0
  • THE STARTECH.COM ADVANTAGE: StarTech.com offers a 2-year warranty & free lifetime 24 hour support on this dual port USB-A & USB-C PCI Express Host Controller card w/ full & low profile bracket incl.

This USB 3.2 Gen 2 card lets you add one USB-C port and one USB-A port to your computer, through a PCI Express slot. It enables you to upgrade your current system by adding two USB 3.2 Gen 2 ports to your computer and giving you access to data transfer speeds up to 10Gbps per port. USB 3.2 Gen 2 (also known as USB 3.1) PCIe Add-On card supports Multiple INs, maintains optimal bandwidth even when mixed speed devices are connected. Plus, by adding one USB-C and one USB-A port to your PC, you can easily connect legacy, modern, and future USB devices, regardless of the USB connector type. By adding 10Gbps USB ports to your computer, you can harness the speed of USB 3.2 Gen 2 and rest assured you're ready for both current and future high-bandwidth USB-A and USB-C devices. With higher data throughput support, this USB 3.2 PCIe card is a necessity for external drives, drive enclosures, and many other USB 3.2 peripherals. Plus, the expansion card with SATA power enables supplemental power to the USB ports (when motherboard power is insufficient) providing up to 5V 3A/15W via the USB-C port and 5V 0.9A/4.5W via the USB-A port. The card is ideal for use with high performance external storage solutions. Connecting older peripherals isn't a problem. This versatile dual-port USB 3.2 card is backward compatible with legacy USB 3.2 Gen 1/2.0 devices that use the common USB Type-A port, so you can eliminate the added expense and aggravation of purchasing new devices. You can also connect older devices on the USB Type-C port using a variety of USB-C cables and adapters. The USB 3.2 card is compatible with a broad range of Windows, macOS and Linux operating systems. Plus, the high-quality card includes both standard-profile and low-profile brackets, making it easy to install in full or small form-factor PCs and servers. The card supports USB data transfer speeds of 10Gbps. But, you can experience transfer speeds up to 70% faster than conventional USB, when connected to a computer that also supports UASP. With UASP you can utilize the full potential of a SATA III SSD or HDD. UASP is supported in Windows 8, macOS (10.8 or above), and Linux. In testing, UASP performs with a 70% faster read speed and 40% faster write speed over traditional USB 3.2 Gen 2 at peak performance. At the same peak in testing, UASP also shows an 80% reduction in required processor resources. The PEXUSB311AC3 is backed by a StarTech.com 2-year warranty and free lifetime technical support.


Brand NameStarTech.com
Country of OriginTaiwan
Environmental CertificationREACH
Environmental CertificationRoHS
Environmental CertificationWEEE
Environmentally FriendlyYes
Form FactorPlug-in Card
Height0.7"
Host InterfacePCI Express x4
Length4.7"
Limited Warranty2 Year
ManufacturerStarTech.com
Manufacturer Part NumberPEXUSB311AC3
Number of SATA Ports1
Number of USB 3.2 Ports2
Operating System SupportedLinux
Operating System SupportedMac OS X 10.13 High Sierra
Operating System SupportedMac OS X 10.14 Mojave
Operating System SupportedMac OS X 10.15 Catalina
Operating System SupportedMac OS X 11.0 Big Sur
Operating System SupportedMac OS X 12.0 Monterey
Operating System SupportedMac OS X 13.0 Ventura
Operating System SupportedWindows 10
Operating System SupportedWindows 11
Operating System SupportedWindows 7
Operating System SupportedWindows 8
Operating System SupportedWindows 8.1
Operating System SupportedWindows Server 2008 R2
Operating System SupportedWindows Server 2012
Operating System SupportedWindows Server 2016
Operating System SupportedWindows Server 2019
Package Contents
  • USB Adapter
  • 1 x Low Profile Bracket
  • 1 x Quick Start Guide
Packaged Quantity1
Platform SupportedLinux
Platform SupportedMac
Platform SupportedPC
Product NameUSB Adapter
Product TypeUSB Adapter
Total Number of USB Ports2
UASP SupportYes
Weight (Approximate)1.70 oz
Width3.2"
Download PDF File
BrandStarTech.com
Weight (lbs)0.2500
UPC065030887083
MPNPEXUSB311AC3
