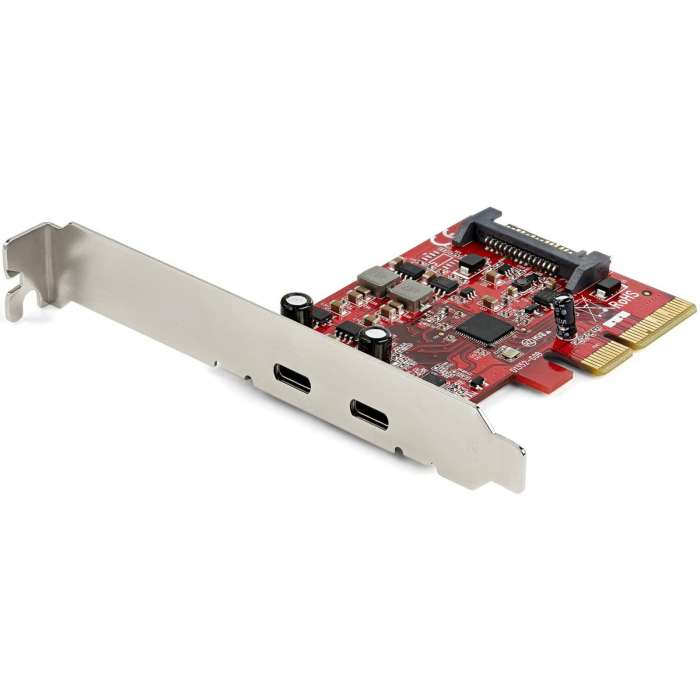

StarTech.com 2-port 10Gbps USB C PCIe Card Adapter
Delivered in 2-4 business days
- VERSATILE USE: This 2-port PCIE USB 3.2 Gen 2 card features a dual-profile design to fit into both standard and low-profile systems, and includes an optional SATA power connector for high power devices Upgraded version of our popular USB card PEXUSB312C2
- POWER: Expansion card w/ SATA power header supplies supplemental power to the USB Type-C ports (when motherboard power is insufficient) providing up to 5V 3A (15W) via the USB-C ports
- MAX PERFORMANCE WITH USB STORAGE DEVICES: 2-port USB-C PCIe Card adapter supports USB Attached SCSI Protocol (UASP) optimizing USB performance w/ external storage devices like SSDs, HDDs, NVMe drives
- COMPATIBILITY: Installs in full/low-profile PCIe 3.0 x4 desktop/server slot (lower performance w/ PCI-e 2.0); Windows/Linux/macOS w/auto driver install (Windows 8 & above); Works w/USB 3.2/3.1/3.0/2.0
- THE STARTECH.COM ADVANTAGE: StarTech.com offers a 2-year warranty & free lifetime 24 hour technical support on thisdual port USB-C PCI Express Add On Card w/ full & low profile bracket incl.
This PCIe USB 3.2 Gen 2 card installs into an available PCI-Express slot in your computer and enables you to upgrade your current system by adding two USB-C (10Gbps) ports. Also known as USB 3.1 Gen 2, this USB 3.2 Gen 2 card adds two 10Gbps USB Type-C ports to your computer. Utilizing an ASMedia ASM3142 chipset, this card harnesses the speed of USB 3.2 Gen 2. With higher data throughput support, this USB 3.2 Gen 2 PCIe expansion card is a necessity for external drives and many other USB 3.2 Gen 2 peripherals and includes an optional SATA power connector for high power devices. The card is backward compatible with USB 3.2 Gen 1 (5Gbps) and USB 2.0 (480mbps) devices. The card works with newer USB-C devices, but can easily support your existing USB-A peripherals using inexpensive USB Type C cables and adapters. See our Accessories Tab for supported options. The USB 3.2 card is compatible with Windows, Linux and macOS operating systems. The card includes both standard-profile and low-profile brackets to install in various form-factor PCs and servers. StarTech.com conducts thorough compatibility and performance testing on all our products to ensure we are meeting or exceeding industry standards and providing high-quality products to IT Professionals. Our local StarTech.com Technical Advisors have broad product expertise and work directly with our StarTech.com Engineers to provide support for our customers both pre and post-sales. The PEXUSB312C3 is backed by a StarTech.com 2-year warranty and free lifetime technical support.
| Brand Name | StarTech.com |
|---|---|
| Country of Origin | Taiwan |
| Environmental Certification | REACH |
| Environmental Certification | RoHS |
| Environmental Certification | WEEE |
| Environmentally Friendly | Yes |
| Form Factor | Plug-in Card |
| Height | 0.7" |
| Host Interface | PCI Express x4 |
| Length | 4.8" |
| Limited Warranty | 2 Year |
| Manufacturer Part Number | PEXUSB312C3 |
| Manufacturer | StarTech.com |
| Number of SATA Ports | 1 |
| Number of USB 3.2 Ports | 2 |
| Operating System Supported | Linux |
| Operating System Supported | Mac OS X 10.13 High Sierra |
| Operating System Supported | Mac OS X 10.14 Mojave |
| Operating System Supported | Mac OS X 10.15 Catalina |
| Operating System Supported | Mac OS X 11.0 Big Sur |
| Operating System Supported | Mac OS X 12.0 Monterey |
| Operating System Supported | Mac OS X 13.0 Ventura |
| Operating System Supported | Windows 10 |
| Operating System Supported | Windows 11 |
| Operating System Supported | Windows 7 |
| Operating System Supported | Windows 8 |
| Operating System Supported | Windows 8.1 |
| Operating System Supported | Windows Server 2008 R2 |
| Operating System Supported | Windows Server 2012 |
| Operating System Supported | Windows Server 2016 |
| Operating System Supported | Windows Server 2019 |
| Package Contents |
|
| Packaged Quantity | 1 |
| Platform Supported | Linux |
| Platform Supported | Mac |
| Platform Supported | PC |
| Product Color | Black |
| Product Name | 2-Port PCIe USB 3.1 Card - 2x USB-C - USB 3.1 Gen 2 Up to 10Gbps |
| Product Type | USB Adapter |
| Total Number of USB Ports | 2 |
| UASP Support | Yes |
| Weight (Approximate) | 1.60 oz |
| Width | 3.1" |
| UNSPSC | 43211609 |
| Download PDF File |
| Brand | StarTech.com |
|---|---|
| Weight (lbs) | 0.2500 |
| UPC | 065030887434 |
| MPN | PEXUSB312C3 |
