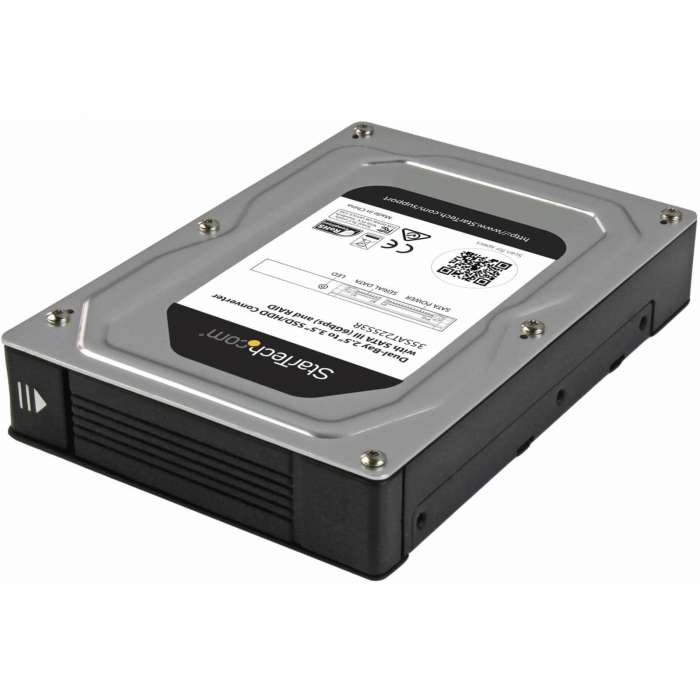

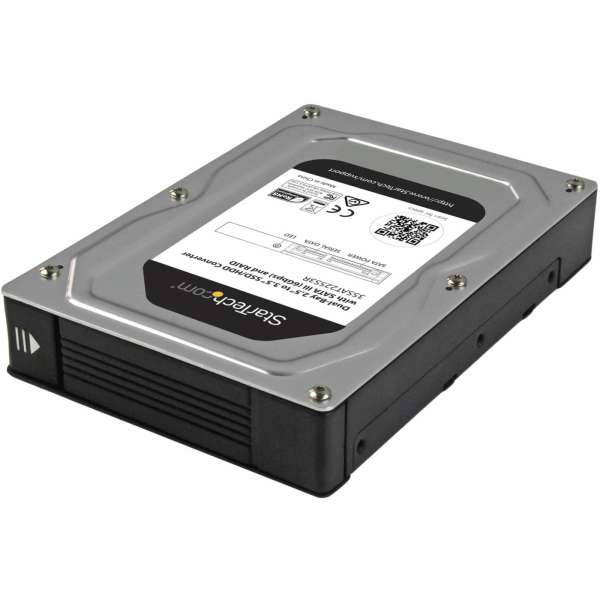

StarTech.com Dual-Bay 2.5in to 3.5in SATA Hard Drive Adapter Enclosure with RAID - Supports SATA III & RAID 0, 1, Spanning, JBOD Aluminum

SKU
STC35SAT225S3R
$69.01 /EACH

Delivered in 2-4 business days

Out of stock
  • Upgrade your system performance by installing two 2.5? SSDs/HDDS in a 3.5" drive bay
  • Features hardware RAID - RAID 0, 1 plus JBOD and spanning to enhance drive performance or add redundancy
  • Installs easily into internal or external 3.5? drive bays
  • Supports SATA I, II and III (up to 6Gbps)
  • TRIM support for stable performance
  • Durable aluminum housing

This unique dual-bay adapter enclosuregives you an easy and cost-effective way to upgrade legacy systemssuch asdesktop PCs and servers, byletting you installtwo 2.5"" solid-state drives or hard drives into a single 3.5"" drive bay. Upgradeyour system performance The adapter enclosurelets youinstall newer, higher performingdrives such as SSDs into legacy systems that may only support 3.5" hard drives.The enclosure provides a cost-efficient way for companies and organizations to enhance storage performance and reliability without expensive upgrades to core IT systems. It's also ideal for system administrators and integrators who want to build a system or upgrade a system with limited SATA interfaces to take advantage of the increased drive performance of 2.5" SSDs or increased capacity with support for two drives. The adapterenclosure allows you to install two 2.5"" SATA drives into an internal or external 3.5-inch bay, such as a drive drawer caddy or tray, or 3.5"" drive enclosure. To utilize the full speed potential of your SATA III hard drives, the drive converter supports SATA III for transfer speeds up to 6Gbps. Suitable for drives with a height of up to 9.5 mm, virtually any 2.5"" SATA drive can be made to look and function like a 3.5"" drive. Enhanced performance anddata redundancy with RAID Theadapter enclosureis equipped with hardware RAID to provide improved performance and data redundancy. Theenclosure supports both RAID 0 and RAID 1 as well as Spanning, and JBOD, and lets you choose your preferred backup mode by simply adjusting the RAID setting switch. The RAID 1 functionalityis ideal in a hot-swapping server environment, providinga level of security and reliability to your data through data redundancy. With RAID 0 support, you can combine the storage capacity of the two hard drives andachieve faster read and write speeds. Easy and flexible installation You can install the adapter enclosure into a desktop PC or server. It offers flexible use in hot-swap bays or in a more fixed, permanent installation in a 3.5" hard-drive mounting bay with standard mounting holes. Once installed, you simply slide two 2.5" HDDs/SSDs into the adapter enclosure, with no tools required. The aluminum housing protects installed drives in a durable enclosure. The 35SAT225S3R is backed by a StarTech.com 2-year warranty and free lifetime technical support.


Brand NameStarTech.com
Controller TypeSerial ATA/600
Country of OriginChina
Depth5.7"
Environmental CertificationREACH
Environmental CertificationRoHS
Environmental CertificationWEEE
Environmentally FriendlyYes
Form FactorInternal
Height1"
Host InterfaceSATA/600
Limited Warranty2 Year
Manufacturer Part Number35SAT225S3R
ManufacturerStarTech.com
Number of 2.5" Bays2
Number of Hard Drives Supported2
Number of Solid State Drive Supported2
Number of Total Expansion Bays2
Package Contents
  • Dual-Bay 2.5" to 3.5" SATA Hard Drive Adapter Enclosure with RAID
  • 4 x Mounting Screws
  • 1 x Quick-Start Guide
Packaged Quantity1
Product NameDual-Bay 2.5" to 3.5" SATA Hard Drive Adapter Enclosure with RAID
Product TypeDAS Storage System
RAID Levels0, 1, Concatenation, JBOD
RAID SupportedYes
Weight (Approximate)7.90 oz
Width4"
UNSPSC43201802
Download PDF File
BrandStarTech.com
Weight (lbs)0.6000
UPC065030864381
MPN35SAT225S3R
