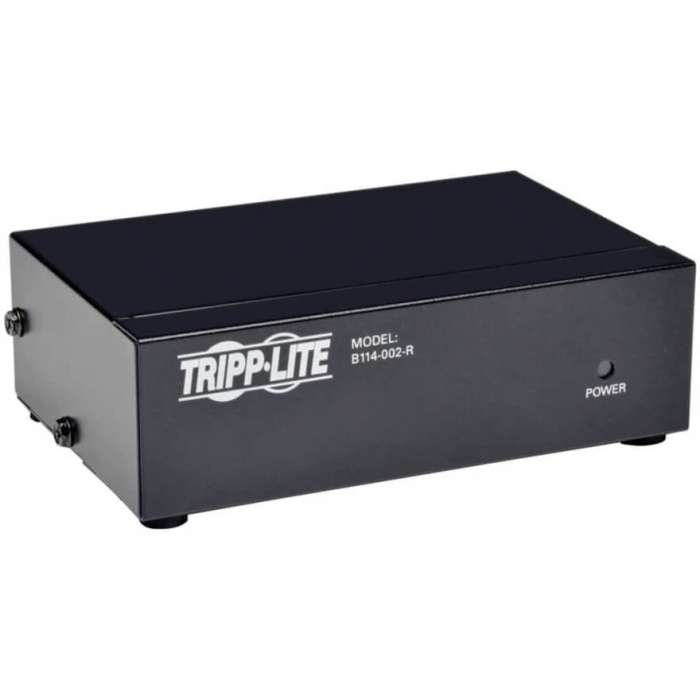

VGA/SVGA Video Splitter with Signal Booster, HD15 M/2xF, 2 Ports

Rating:
100%
SKU
TRPB114002R
$54.71 /EACH

Delivered in 2-4 business days

Out of stock
  • Simultaneously displays video on 2 VGA/SVGA monitors
  • A built-in booster allows a video signal (up to 2048 x 1536 @ 60Hz) to be transmitted up to 210 ft. from the source
  • The splitter can be located up to 25 ft. from the connected computer, and up to 185 ft. from the connected monitors
  • 350Mhz bandwidth support

Two-port, VGA/SVGA video splitter with signal booster technology provides bandwidth support at 350MHz to let you simultaneously display video on two monitors at once. A built-in booster allows a video signal (up to 2048 x 1536 at 60Hz) to be transmitted up to 210' from the source. Two standard HD15 female ports are used to connect the monitors while the third HD15 male port is used to connect your CPU. The splitter can be located up to 25' from the connected computer and up to 185' from the connected monitors. The number of connected monitors can be expanded by cascading up to three levels of additional splitters together. Video splitter is designed for use with computers with a HD15 port.


Packaged Quantity1
Number of Input Devices Supported1
Device SupportedComputer
Number of Displays Supported2
Graphics ModesQXGA
Maximum Video Resolution2048 x 1536
Maximum Video Bandwidth350 MHz
VGA InYes
VGA OutYes
Number of VGA Inputs1
Number of VGA Outputs2
Maximum Operating Distance210 ft
Input Voltage9 V DC
Product ColorBlack
Package Contents
  • B114-002-R VGA Splitter
  • External Power Supply with NEMA 1-15P Plug
  • User Manual
Additional Information
  • Used primarily with video presentations or sharing information with multiple users
  • Daisy-chain multiple units to increase the number of outputs
  • Rugged, fully shielded metal housing
  • Tripp Lite warrants this product to be free from defects in materials and workmanship for life
Environmental CertificationRoHS
Country of OriginChina
Limited Warranty3 Year
Additional Warranty Information1 year limited warranty
Download PDF File
BrandTripp Lite
Weight (lbs)1.7000
UPC037332124890
MPNB114-002-R
